Installing the component earner

NOTE: RISK OF DAMAGE
Damage to the surface .
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage .

Do not use any metal-cutting tools.

NOTE: TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.

Check centering sleeves (1) in the marked area for damage and replace centering sleeves (1) if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
Clean sealing surfaces (1) with special tool 0 495 102 (11 4 470) .

Courtesy of BMW OF NORTH AMERICA, INC.

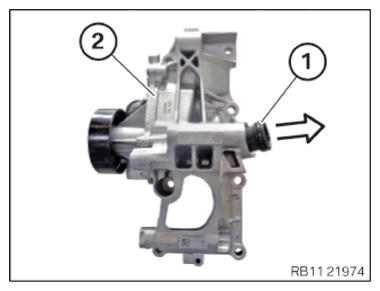

Guide the connecting pipe (1) out of the component carrier (2) in the arrow direction and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace sealing rings (1) on thee connecting pipe (2).
Parts: Sealing ring
Coat sealing rings (1) with coolant before installing.

Courtesy of BMW OF NORTH AMERICA, INC.

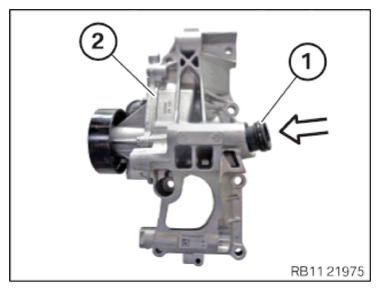

Guide the connecting pipe (1) in the arrow direction and install it on the component carrier (2).

Courtesy of BMW OF NORTH AMERICA, INC.

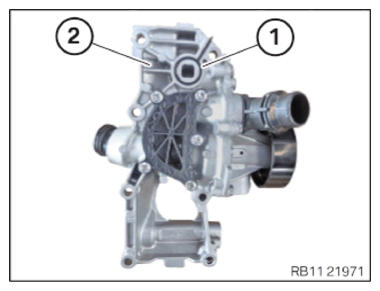

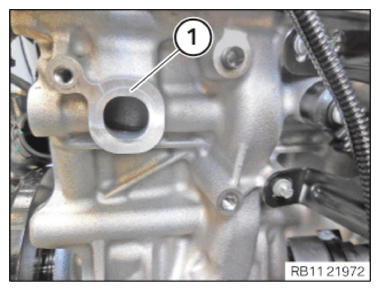

Replace sealing ring (1).
Parts: Sealing ring

Courtesy of BMW OF NORTH AMERICA, INC.

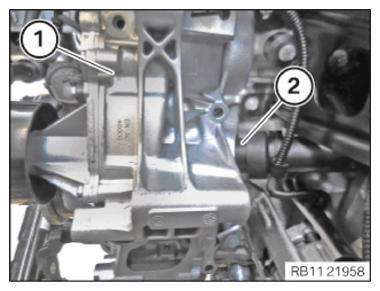

Insert and install function carrier (1) using the connecting pipe (2).

Courtesy of BMW OF NORTH AMERICA, INC.

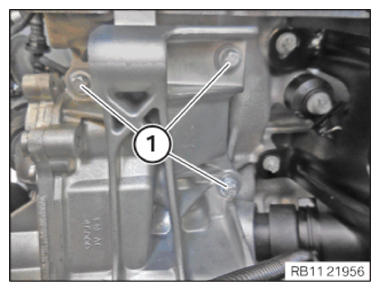

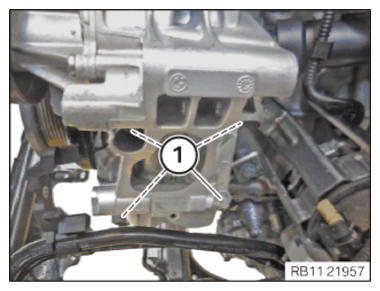

Hand-tighten the bolts (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Hand-tighten the bolts (1).

Courtesy of BMW OF NORTH AMERICA, INC.

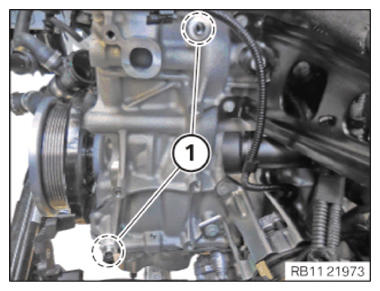

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Coolant pump with function carrier on crankcase
M8x35	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Coolant pump with function carrier on crankcase
M8x35	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

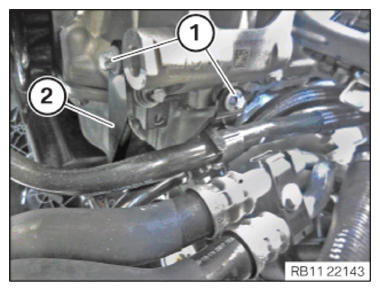

Insert the holder (2) for the engine and the transmission oil lines and position it.

Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Engine holder - transmission oil line on the engine mount
M6X16	tightening torque	12 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

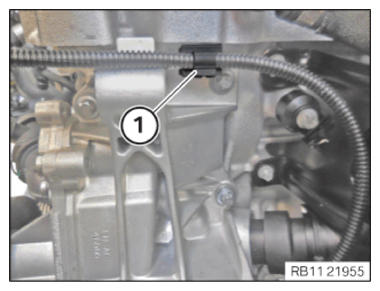

Secure clamps (1).

Courtesy of BMW OF NORTH AMERICA, INC.

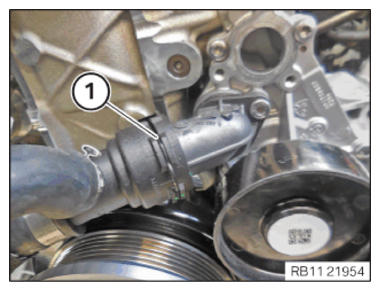

Connect and lock coolant line (1).
Make sure that the coolant line (1) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE COOLANT LINE BETWEEN THE CYLINDER HEAD AND THE COOLANT PUMP .
Refer to INSTALLING AIR CONDITIONING COMPRESSOR .
Refer to EVACUATING AND CHARGING CONDITIONING .
Refer to INSTALLING THE ALTERNATOR .
Refer to INSTALLING THE DRIVE BELT FOR ALTERNATOR .
Refer to INSTALLING THE THROTTLE BODY .
Refer to INSTALLING CHARGE AIR LINE .
Refer to INSTALLING CLEAN AIR PIPE .
Refer to INSTALLING INTAKE FILTER HOUSING .
Refer to INSTALLING FAN COWL .
Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
Refer to INSTALLING UPPER CROSS CONNECTION .
Refer to INSTALLING THE COVER FOR CENTRAL ENGINE COMPARTMENT .
Refer to INSTALLING THE FRONT HOOD SEAL .
Refer to ACTIVATING ELECTRICAL SYSTEM .
Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
Refer to INSTALLING ACOUSTIC COVER .
Refer to INSTALLING THE STIFFENING PLATE .
Refer to INSTALLING FRONT UNDERBODY PROTECTION .
