Installing air conditioning compressor
Preparing for the installation of the air-conditioning compressor

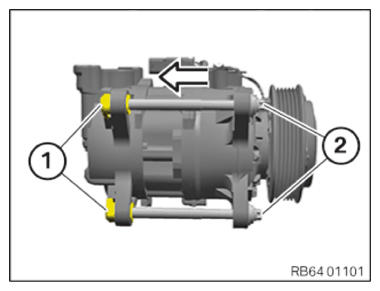

- Screw the screws (2) into the threaded support bushings (1).
- Push back the threaded support bushings (1) with the help of screws (2) slightly in the arrow direction.
- Unscrew the screws (2) out of the threaded support bushings (1).
NOTE:
TECHNICAL INFORMATION
Secure component against falling.
Secure component against falling.
- Replace O-rings.
Parts: O-rings

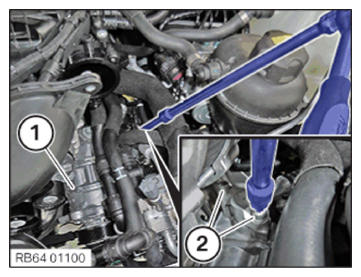

- Insert and position the air conditioning compressor (1) from above.
- Correctly position the refrigerant lines on the air conditioning compressor (1).
- Tighten down screws (2).
TIGHTENING TORQUES SPECIFICATION
| Refrigerant line on air conditioning compressor | ||
| M8 | tightening torque | 19 Nm |

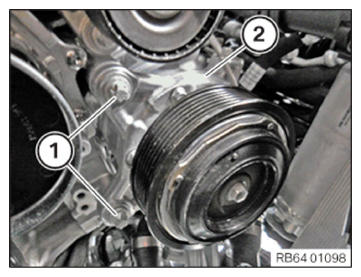

- Correctly position the air conditioning compressor (2).
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Air conditioning compressor in component carrier | ||
| M10 | Tightening torque | 38 Nm |

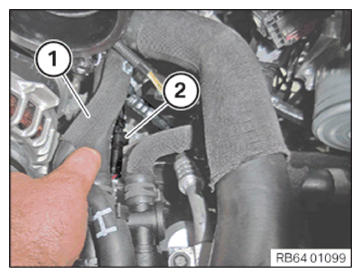

- Slide the coolant hose (1) slightly to the side.
- Connect connectors (2) and lock.
Follow-up work
- 4-cyl. engine: Refer to INSTALLING THE DRIVE BELT FOR ALTERNATOR .
- 6-cyl. engine: Refer to INSTALLING THE DRIVE BELT FOR ALTERNATOR .
- Refer to INSTALLING FAN COWL .
- Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
- Refer to INSTALLING UPPER CROSS CONNECTION .
- Refer to INSTALLING THE COVER FOR CENTRAL ENGINE COMPARTMENT .
- Refer to INSTALLING THE FRONT HOOD SEAL .
- Refer to EVACUATING AND CHARGING CONDITIONING .
- Refer to RUNNING IN THE NEW AIR CONDITIONING COMPRESSOR .
