Install heat management module

NOTE: TECHNICAL INFORMATION
The sealing surfaces must be free of oil, grease and cleaning agents.

NOTE: RISK OF DAMAGE
Damage to the surface.
The use of metal-cutting tools (e.g., emery cloths) for cleaning surfaces can damage them and lead to leaks and/or engine damage.

Do not use any metal-cutting tools.

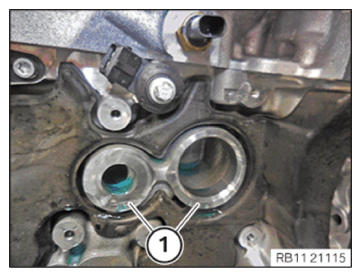

Clean the sealing surfaces (1) on the crankcase with the special tool 0 495 102 (11 4 470) .

Courtesy of BMW OF NORTH AMERICA, INC.

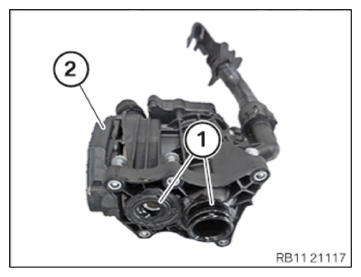

Replace the sealing rings (1) .
Parts: Sealing ring
Feed in the sealing rings (1) at the heat management module (2) and install.

Courtesy of BMW OF NORTH AMERICA, INC.

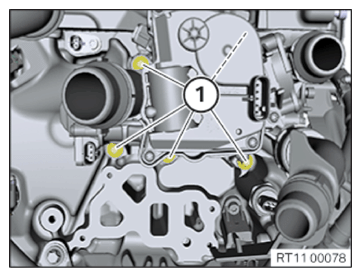

Correctly position the heat management module.
Hand-tighten the bolts (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (2) .

TIGHTENING TORQUES SPECIFICATION

Heat exchange module to crankcase
M6	Tightening torque	9 Nm

Connect and lock the connector (1) .
Make sure the connector (1) engages audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1) .

TIGHTENING TORQUES SPECIFICATION

Heat exchange module to crankcase
M6	Tightening torque	9 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.

Route all cables without abrasions, do not trap and crush.

Insert the wiring harness section (6) for the sensor system 1 and position it.

Courtesy of BMW OF NORTH AMERICA, INC.
Secure clamps (5) .
Connect connectors (1) to (4) and lock.
Make sure that the connectors (1) to (4) snap-in audibly.
Connect connectors (1) to (3) and lock.
Make sure that the connectors (1) to (3) snap-in audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE COMPLETE FULL-FLOW OIL FILTER .
Refer to INSTALLING THE OIL FILTER ELEMENT .
Refer to INSTALLING THE INTAKE PLENUM .
Refer to INSTALLING THE TANK VENT VALVE .
Refer to INSTALLING CONTROL UNIT BRACKET .
Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
Refer to INSTALLING THE DME CONTROL UNIT .
Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE, FRONT .
Refer to INSTALLING THE CLEAN AIR PIPE WITH THE RESONATOR .
Refer to TOPPING UP THE MOTOR OIL .
Refer to INSTALLING THE OIL FILLER CAP .
Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
Refer to ACTIVATING ELECTRICAL SYSTEM .
Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
Refer to CHECKING ENGINE OIL LEVEL .
Refer to INSTALLING ACOUSTIC COVER AT REAR .
Refer to INSTALLING ACOUSTIC COVER .
Refer to INSTALLING THE REAR HOOD SEAL .
Refer to IF INSTALLED: INSTALLING UNDERBODY PROTECTION FOR THE STEERING .
Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR .
Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
Refer to INSTALLING FRONT UNDERBODY PROTECTION .
