Installing wind deflector mount

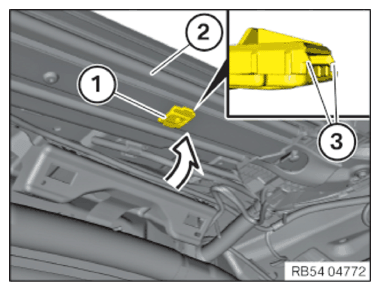

• Position the wind deflector mount (1)  in the cutout on the slide/tilt sunroof frame (2)  .
• Clip in the wind deflector mount (1)  on the slide/tilt sunroof frame (2)  .
• Make sure the snap-in lugs (3)  engage correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING WIND DEFLECTOR .
• Refer to INSTALLING THE HEADLINING WITH THE SLIDING/TILTING SUNROOF (LOWERED) .
• Refer to INSTALLING THE COVERS FOR THE INTERIOR MIRRORS .
• Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
• Refer to INSTALLING THE LEFT AND RIGHT HANDS-FREE MICROPHONE .
• Refer to INSTALLING FRONT VANITY MIRROR LIGHT .
• Refer to INSTALLING COUNTER SUPPORTS FOR THE SUN VISOR ON LEFT AND RIGHT .
• Refer to INSTALLING THE LEFT AND RIGHT SUN VISOR .
• Refer to INSTALLING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
• Refer to INSTALLING INTERIOR ROOF LIGHT .
• Refer to INSTALLING THE LEFT AND RIGHT C-PILLAR TRIM PANEL .
• Refer to INSTALLING THE LEFT AND RIGHT B-PILLAR TRIM PANEL .
• Refer to INSTALLING 3RD BRAKE LIGHT TRIM .
• Refer to INSTALLING LEFT AND RIGHT REAR SIDE TRIM PANEL .
• Refer to INSTALLING THE LEFT AND RIGHT SEATBELT FINISHER STRIP .
• Refer to INSTALLING THE INNER DOOR SILL COVER STRIP ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE LEFT AND RIGHT BACKREST SIDE SECTION .
• Refer to INSTALLING THE REAR SEAT .
