Installing the control unit holder

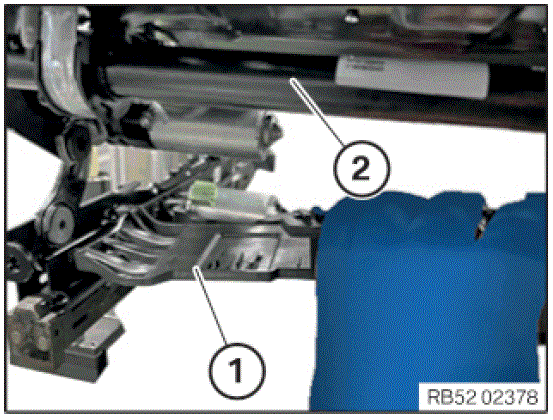

• Carefully maneuver control unit bracket (1) with the control unit into the seat mechanism (2) using slight tilting movements as shown.

  Courtesy of BMW OF NORTH AMERICA, INC.

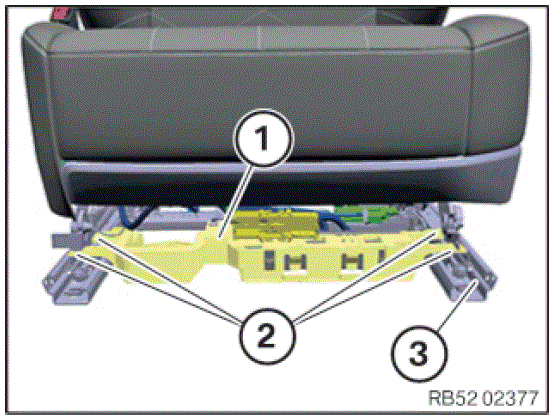

• Carefully clip control unit bracket (1) into the guide rail (3) at all marked points (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to FITTING THE SEAT COVER WITH THE CUSHION FOR THE FRONT SEAT .
• Refer to INSTALLING THIGH SUPPORT .
• Refer to INSTALLING THE BACKREST COVERING WITH THE CUSHION FOR THE FRONT SEAT .
• Refer to INSTALLING THE REAR PANEL ON THE FRONT SEAT BACKREST .
• Refer to INSTALLING A COVER FOR BACKREST RELEASE .
• Refer to INSTALLING INNER COVER ON FRONT SEAT .
• Refer to INSTALLING OUTER COVER ON FRONT SEAT .
• Refer to INSTALLING THE GUIDE SLEEVE FOR THE FRONT HEAD RESTRAINT .
• Refer to INSTALLING THE HEAD RESTRAINT IN FRONT .
• Refer to INSTALLING FRONT SEAT .
