Fitting the seat cover with the cushion for the front seat
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

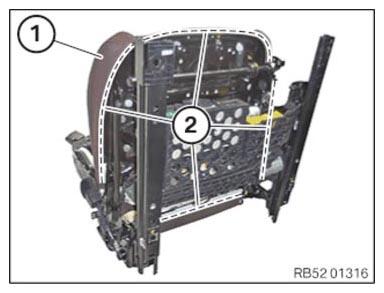

- Insert seat cover (1) with the cushion and position.
- Attach seat cover (1) in the areas (2).
- If necessary, connect and lock existing connectors and clip in the cable bracket.
Fastening the ground cable of the seat occupancy mat (CIS)
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
- Correctly position the ground cable (3) for the seat occupancy mat on the seat mechanism (4).
- Close the cable clip (2).
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Ground cable of the seat occupancy mat (CIS) on seat | ||
| Screw | Tightening torque | 4.5 Nm |
- Position all the holders (2) and tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Seat trim to seat frame | ||
| Sheet metal screw | tightening torque | 2.5 Nm |
