Install the rear panel on the front seat backrest

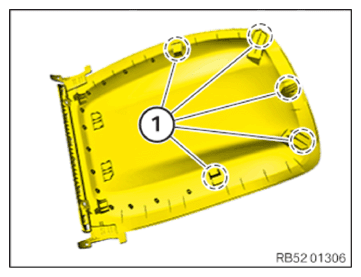

• Check the guides and clamps (1) for damage. If necessary, replace the rear panel.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Guide in the rear panel (1) onto the clamps (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the rear panel (1) and clip into the clamps (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screws (2).

TIGHTENING TORQUES SPECIFICATION

Rear panel to rear seat backrest
Screw	tightening torque	3 Nm

• Clip in the cover caps.

Courtesy of BMW OF NORTH AMERICA, INC.
