Installing the backrest covering with the cushion for the front seat
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Airbag unit.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Before working on the airbag, disconnect the negative battery cable from the battery.
- Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

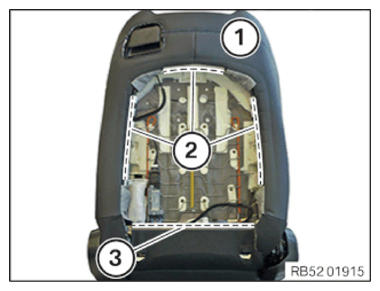

- Positioning the backrest covering (1) with the cushion without damaging it in the marked area (2).

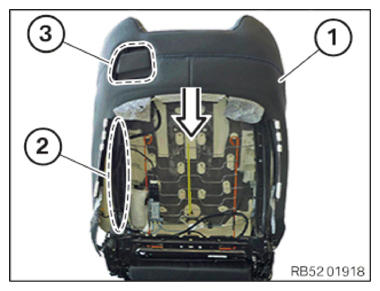

- Position the backrest covering (1) complete with the side airbag in the arrow direction.
- Position the stud bolt of the side airbag in the area (2) correctly.
- Correctly position the backrest covering (1) in the marked area (3).

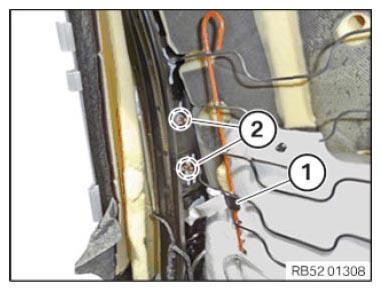

- Attach holder (1).
- Replace nuts (2).
Parts: Nuts
- Tighten nuts (2).TIGHTENING TORQUES SPECIFICATION
Airbag on the backrest frame Nut
Replace nut.tightening torque 6.5 Nm - Connect connectors (1) and lock.

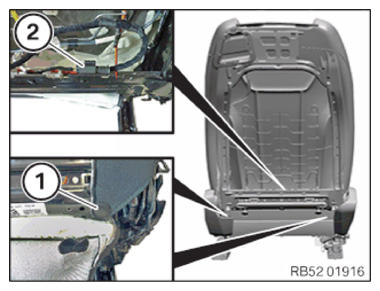

- Clip in clips (1).
- Connect connectors (2) and lock.
- Attach the backrest covering (1) in the area (2).
- Attach the seat cover (3).
