Installing the guide sleeve for the front head restraint
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

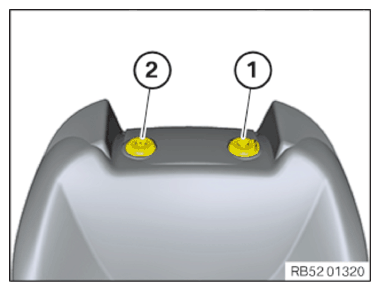

- Pay attention to the installation position:
Insert the guide sleeve (1) with unlocking on the left side in the driving direction.
Insert the guide sleeve (2) without unlocking on the right side in the driving direction.
NOTE:
The description is provided only at one component. The procedure is the same for all other components.
- Insert the guide sleeve (1) into the rear seat backrest from above in the arrow direction and lock it.
The guide sleeve (1) must engage so that you can feel it.
Follow-up work
- Refer to INSTALLING THE HEAD RESTRAINT IN FRONT .
