Installing the release mechanism on the front seat

NOTE: TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.

Position release mechanism (3) as shown.

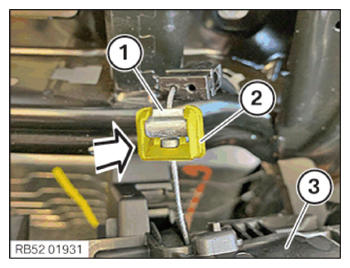

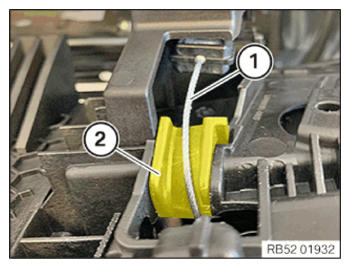

Clip in the Bowden cable (1) carefully in the arrow direction into the connecting piece (2) marked in yellow.

Courtesy of BMW OF NORTH AMERICA, INC.

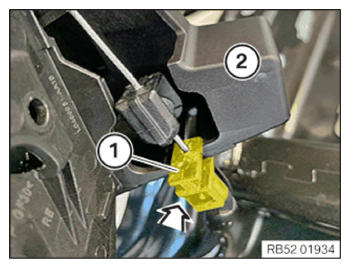

Feed in the Bowden cable (1) in the arrow direction into the release mechanism (2).

Courtesy of BMW OF NORTH AMERICA, INC.

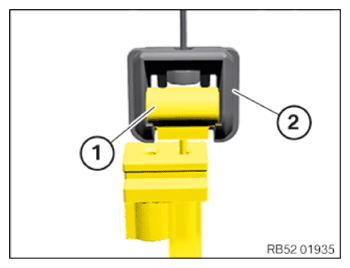

Ensure that the cable linkage (1) of the release mechanism is routed into the guide (2) marked in yellow as shown.

Courtesy of BMW OF NORTH AMERICA, INC.

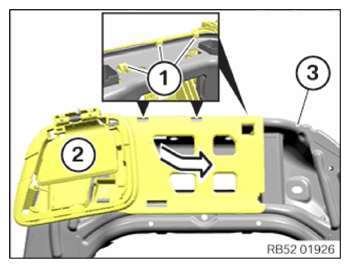

Feed the release mechanism (2) in the arrow direction into the backrest frame (3).
Clip the locks (1) into the backrest frame (3).

Courtesy of BMW OF NORTH AMERICA, INC.

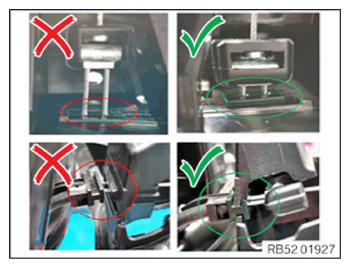

Make sure the Bowden cable (1) is snapped correctly into the connecting piece (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Install the marked sliding piece in release mechanism as shown.

Courtesy of BMW OF NORTH AMERICA, INC.

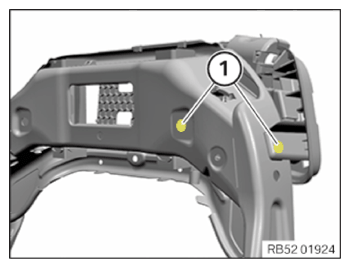

Replace the blind rivet (1).
Parts: Blind rivet
Secure the release mechanism with blind rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the blind rivet (1).
Parts: Blind rivet
Secure the release mechanism with blind rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

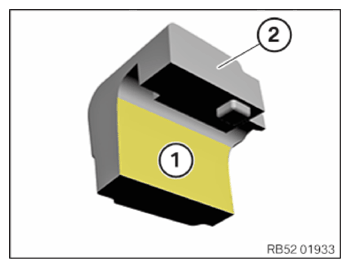

Replace marked adhesive strip (1) on the insert (2).
Parts: Adhesive strip

Courtesy of BMW OF NORTH AMERICA, INC.

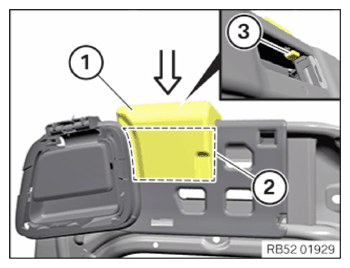

Snap-in the insert (1) into the lock (3) in the arrow direction.
Bond the insert (1) in the marked area (2) with the appropriate adhesive strip.

Courtesy of BMW OF NORTH AMERICA, INC.

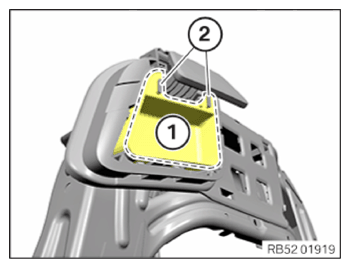

Position cover (1) as shown.
Clip in cover (1) at the locks (2) and in the marked area carefully.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE BACKREST COVERING WITH THE CUSHION FOR THE FRONT SEAT .
Refer to INSTALLING THE REAR PANEL ON THE FRONT SEAT BACKREST .
Refer to INSTALLING A COVER FOR BACKREST RELEASE .
Refer to INSTALLING INNER COVER ON FRONT SEAT .
Refer to INSTALLING OUTER COVER ON FRONT SEAT .
Refer to INSTALLING THE GUIDE SLEEVE FOR THE FRONT HEAD RESTRAINT .
Refer to INSTALLING THE HEAD RESTRAINT IN FRONT .
Refer to INSTALLING FRONT SEAT .
