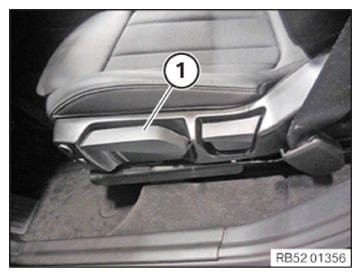

Install outer cover on front seat
- Check the detents (1) for damage. If necessary, replace cover (2).
- Connect and lock connector (1) and, if necessary, clip it into the cable bracket.
- Guide in and position the cover panel (2).
- Engage cover panel (2) at the detents (3).
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Seat trim to seat frame | ||
| Sheet metal screw | tightening torque | 2.5 Nm |
TIGHTENING TORQUES SPECIFICATION
| Outer seat trim to seat frame | ||
| Screw | Tightening torque | 3.5 Nm |
- Position adjustment lever (2) of the seat height adjustment.
- Tighten down screw (1).
- Clip in the cover (3).
- Guide in the handle (1) for the backrest tilt adjustment from above.
- Check to ensure that snap-in lug (2) fits correctly.
- Clip in the handle (1) for the seat height adjustment.
