Install luggage compartment capping

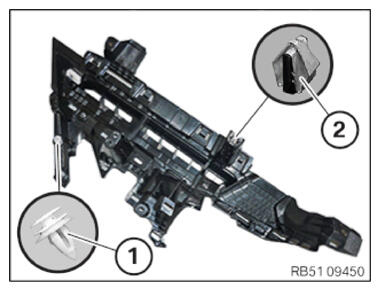

- Check the clip (1) and the clamp (2) and replace if needed.

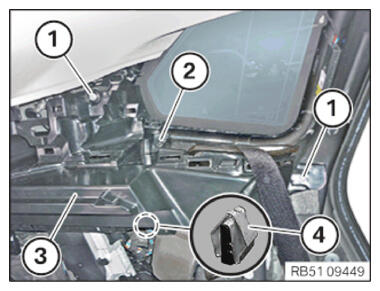

- Install the luggage compartment side shelf (3) and position it correctly.
- Lock in the luggage compartment side shelf (3) at the clamp (4) .
- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Luggage compartment to body | ||
|---|---|---|
| Oval-head screw for thermoplastics | Tightening torque | 2 Nm |
| Plastic nut | Tightening torque | 1.8 Nm |
- Tighten nut (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Luggage compartment to body | ||
|---|---|---|
| Oval-head screw for thermoplastics | Tightening torque | 2 Nm |
| Plastic nut | Tightening torque | 1.8 Nm |

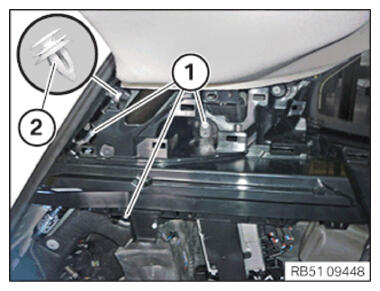

- Clip in the luggage compartment side shelf at the clip (2) .
- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Luggage compartment to body | ||
|---|---|---|
| Oval-head screw for thermoplastics | Tightening torque | 2 Nm |
| Plastic nut | Tightening torque | 1.8 Nm |
Follow-up work
- Refer to INSTALLING D-PILLAR TRIM PANEL .
- Refer to INSTALLING THE HINGE COVER .
- Refer to INSTALLING C-PILLAR TRIM PANEL .
- Refer to INSTALLING THE SEAT BELT FINISHER STRIP .
- Refer to INSTALLING THE COVER OF THE LUGGAGE COMPARTMENT .
- Refer to INSTALLING THE BACKREST SIDE SECTION WITH THE AIRBAG .
- Refer to INSTALLING THE LUGGAGE COMPARTMENT TRIM PANEL ON THE SIDE PANEL ON THE LEFT .
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL, LEFT .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to INSTALLING THE FRONT STORAGE SHELF .
