Installing the backrest side section with the airbag

WARNING: Pyrotechnic components.
Danger! Immobilization period-threatening injuries!

All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
Replace any damaged part or ones that have been dropped.
For additional information, see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

WARNING: Airbag unit.
Danger! Immobilization period-threatening injuries!

Before working on the airbag, disconnect the negative battery cable from the battery.
Airbag unit may only be set down with the cushion (airbag itself) facing upwards.
For additional information, see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

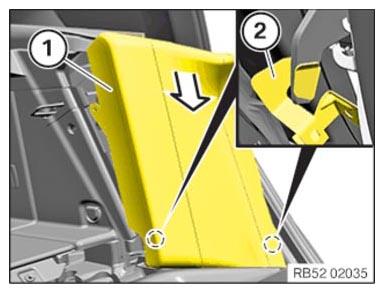

Feed the backrest side section (1) with the airbag correctly in arrow direction into the bottom retaining tabs (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

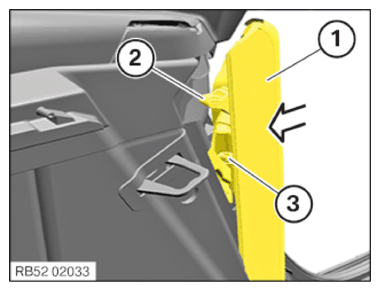

Position the backrest side section (1) with the airbag as shown.
Connect connectors (3) and lock.
Carefully snap-in the detent (2) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

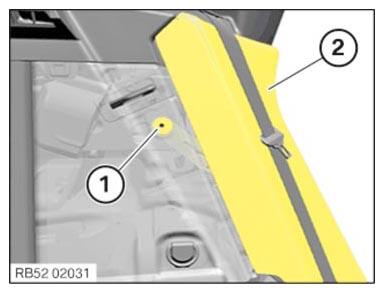

Make sure that the retainer (1) of the backrest side section (2) is positioned correctly with the airbag.

Courtesy of BMW OF NORTH AMERICA, INC.

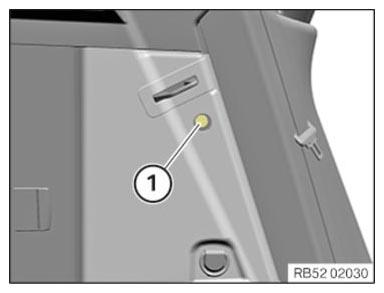

Replace the screw (1) .
Parts: Screw

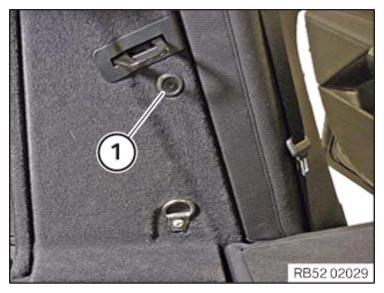

Tighten down screw (1) .

TIGHTENING TORQUES SPECIFICATIONS

Backrest side section with airbag on body
Hexagon screw M6x16 Replace screw.	Tightening torque	11.8 Nm
