Installing the luggage compartment trim panel on the side panel on the left

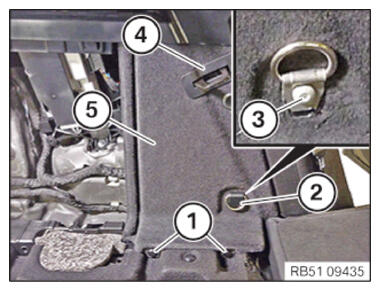

- Guide in and position luggage compartment trim panel (5) correctly.
- Install the lashing eye and tighten screw (3) .
TIGHTENING TORQUE SPECIFICATIONS
| Lashing point in trunk | ||
|---|---|---|
| M8 screw | Tightening torque | 19 Nm |
- Mount cover (2) .
- Install trim (4) .
- Mount the expanding rivets (1) .
Follow-up work
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL, LEFT .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to INSTALLING THE FRONT STORAGE SHELF .
