Installing cylinder head cover

Bolts of the cylinder head cover

Fig 1: Cylinder Head Cover Bolts Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: RISK OF DAMAGE
Improper routing of cables and wiring harnesses .
Trapped, crushed or damaged cables may cause short circuits and malfunctions .

Route all cables without abrasions, do not trap and crush.

NOTE: TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.

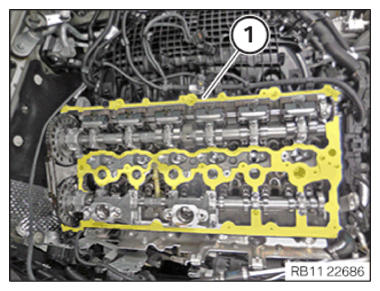

There must be no oil or grease on sealing surface (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

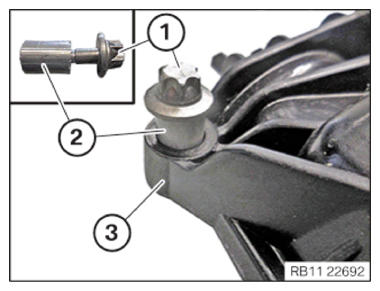

Replace the screws (1) and sleeves (2) on the cylinder head cover (3) .
Parts: Screws

Courtesy of BMW OF NORTH AMERICA, INC.

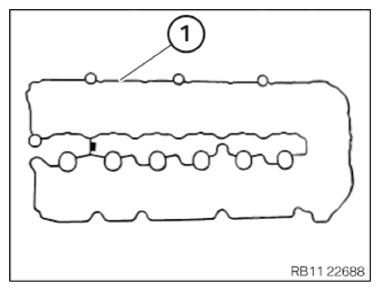

Replace gasket (1) .
Parts: Seal

Courtesy of BMW OF NORTH AMERICA, INC.

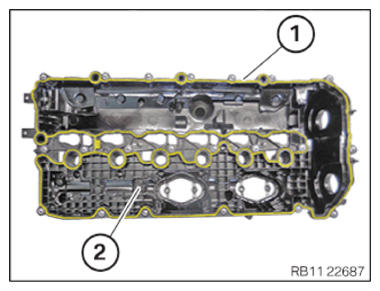

Feed in and install the seal (1) on the cylinder head cover (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

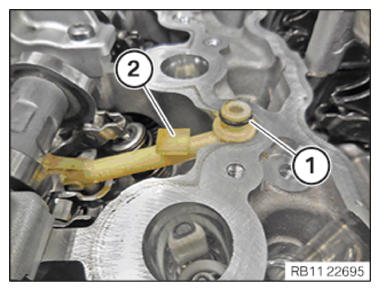

Check the sealing ring (1) on the oil return line (2) for damage.
If necessary, replace the oil return line (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

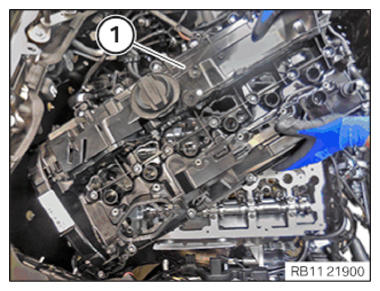

Insert and install the cylinder head cover (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

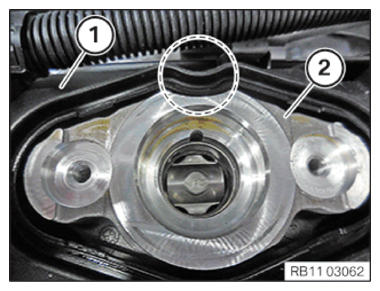

Ensure that the cylinder head cover (1) is installed correctly in the marked area on both the high pressure pump brackets (2) .
The cylinder head cover (1) must not be in the marked area on both the high pressure pump brackets (2) .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
When assembling, it is essential to observe screwing sequences and tightening torques.
Failure to comply with the regulations can lead to leaks and damage.

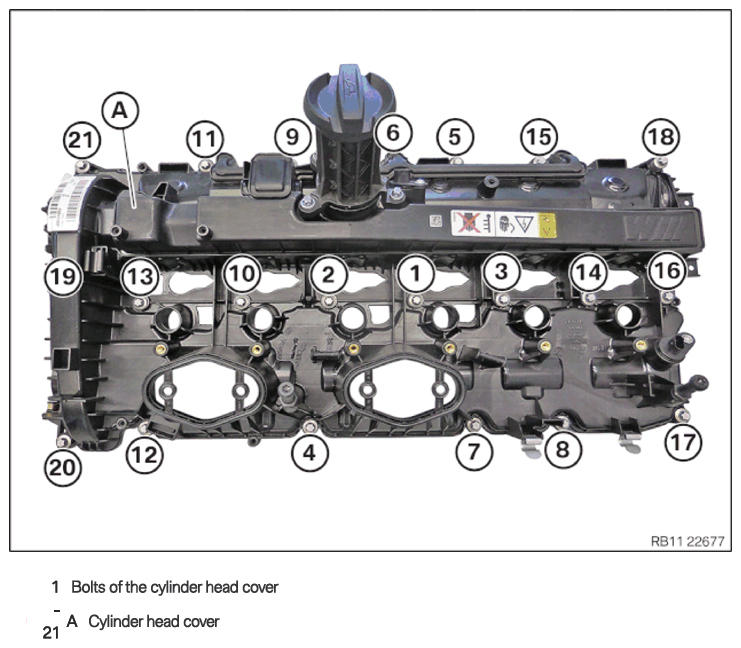

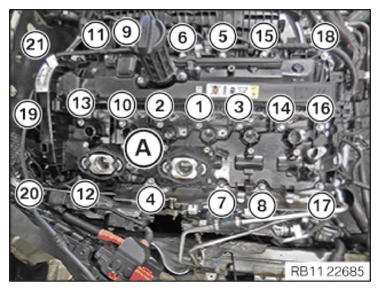

Tighten all the screws in the sequence (1) to (21) on the cylinder head cover (A) .

Fig 2: Cylinder Head Cover Screws Tightening Sequence

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Cylinder head cover to cylinder head
M6 Replace screws.	Joining torque	4 Nm

Tighten all the screws in the sequence (1) to (21) on the cylinder head cover (A) .

TIGHTENING TORQUE SPECIFICATIONS

Cylinder head cover to cylinder head
M6	Angle of rotation	90°

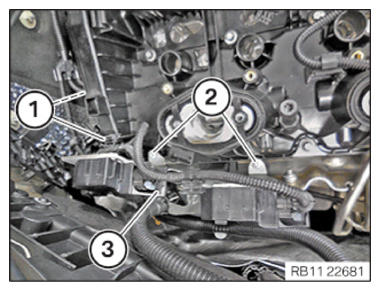

Feed in and install the holder (3) for the differential pressure sensors.
Tighten the screws (2) .

TIGHTENING TORQUE SPECIFICATIONS

Holder, positive battery cable to cylinder head cover
Self-tapping plastic screw 6 x 18	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

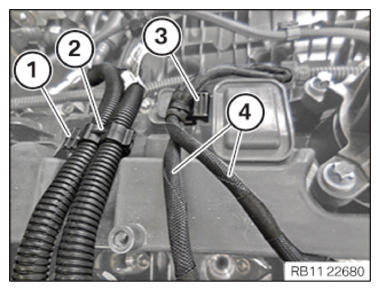

Secure clamps (1) .
Feed in and install the wiring harness section (2) for the injectors and the ignition coils.
Secure the clamp (1) .
Feed in and install the wiring harness section (4) for sensor system 2.
Secure clamps (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

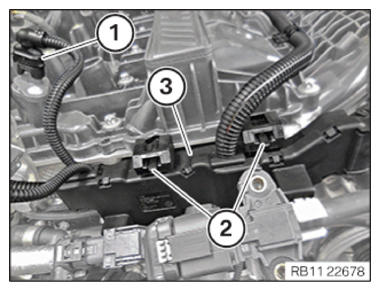

Feed in and install the wiring harness section (3) for sensor system 2.
Locks (2) must engage audibly.
Connect and lock the connector (1) to the exhaust camshaft sensor.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

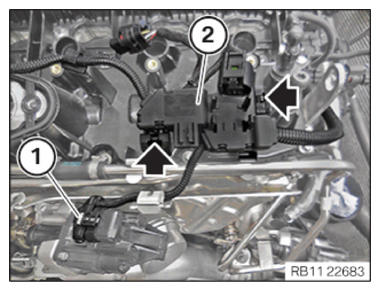

Feed in and install the wiring harness section (2) for sensor system 2.
The locks (arrows) must engage audibly.
Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

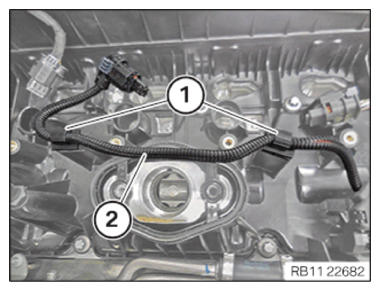

Feed in and install the wiring harness section (2) for sensor system 2 .
Secure clamps (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

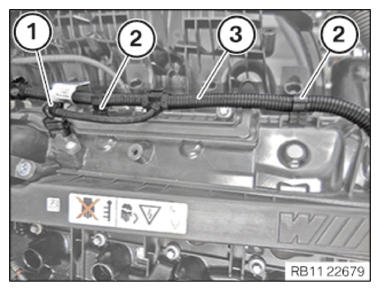

Feed in and install the wiring harness section (3) for sensor system 2.
Secure clamps (2) .
Connect and lock the connector (1) on the intake camshaft sensor.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING BOTH ACTUATORS .
Refer to INSTALLING THE COOLANT RETURNING LINE BETWEEN THE EXHAUST TURBOCHARGER AND THERMOSTAT .
Refer to FASTENING THE AUXILIARY COOLANT PUMP FOR THE EXHAUST TURBOCHARGER .
Refer to INSTALLING THE COOLANT FEED LINE PART 2 BETWEEN THE AUXILIARY COOLANT PUMP AND EXHAUST TURBOCHARGER .
Refer to PREPARING THE INJECTORS FOR INSTALLATION .
Refer to INSTALLING THE HIGH-PRESSURE RAIL WITH INJECTORS OF THE CYLINDERS 4 TO 6 .
Refer to INSTALLING THE HIGH-PRESSURE RAIL WITH INJECTORS OF THE CYLINDERS 1 TO 3 .
Refer to INSTALLING THE TWO HIGH PRESSURE PUMPS .
Refer to INSTALLING THE HIGH PRESSURE LINE BETWEEN THE HIGH PRESSURE PUMP AND THE RAIL FOR CYLINDERS 1 TO 6 .
Refer to INSTALLING FUEL DELIVERY LINE .
Refer to INSTALLING ALL IGNITION COILS .
Refer to INSTALLING THE CHARGE AIR LINE .
Refer to INSTALLING THE CHARGE AIR DUCT FOR CYLINDERS 4-6 .
Refer to INSTALLING THE CHARGE AIR DUCT FOR 1-3 CYLINDERS .
Refer to PARTIALLY INSTALLING THE COOLANT EXPANSION TANK OF THE HIGH-TEMPERATURE COOLANT CIRCUIT .
Refer to INSTALLING THE CLEAN AIR PIPE FOR CYLINDERS 4-6 .
Refer to INSTALLING THE RIGHT INTAKE FILTER HOUSING (FRONT-END STRUT REMOVED) .
Refer to INSTALLING THE INTAKE FILTER HOUSING ON THE LEFT (FRONT-END STRUT REMOVED) .
Refer to INSTALLING THE CLEAN AIR PIPE FOR CYLINDERS 1 TO 3 .
Refer to INSTALLING FAN COWL .
Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
Refer to INSTALLING UPPER CROSS CONNECTION .
Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
Refer to INSTALLING THE FRONT HOOD SEAL .
Refer to INSTALLING THE FRONT-END STRUT .
Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
Refer to CONNECTING ALL BATTERY GROUND LEADS .
Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
Refer to INSTALLING CENTER FIREWALL LOWER PART .
Refer to INSTALLING THE CENTER COWL UPPER PART .
Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
Refer to INSTALLING WINDSHIELD PANEL COVER .
Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
Refer to INSTALLING THE REAR HOOD SEAL .
Refer to INSTALLING ACOUSTIC COVER .
Refer to INSTALLING THE STRUT BRACE .
Refer to INSTALLING THE BOTTOM FRONT RIGHT SIDE COVER .
Refer to INSTALLING THE STIFFENING PLATE .
Refer to INSTALLING FRONT UNDERBODY PROTECTION .
Refer to INSTALLING THE FRONT SPOILER .
Refer to INSTALLING THE LEFT AND RIGHT FRONT UNDERSHIELD .
Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
