Installing fuel delivery line

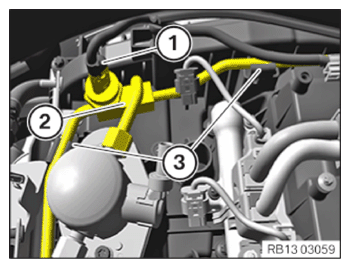

- Guide and position fuel supply line (2) into clamps (3).
- Connect connectors (1) and lock.
The connector (1) must engage audibly.

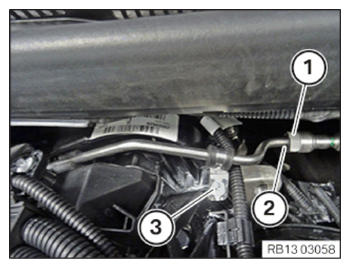

- Slide and lock the fuel supply line in snap fastener (2).
The fuel supply line must be audibly engage in the snap fastener (2).
- Tighten down screw (3).
TIGHTENING TORQUE SPECIFICATIONS
| Fuel line to cylinder head cover | ||
|---|---|---|
| 6x18 | tightening torque | 7 Nm |

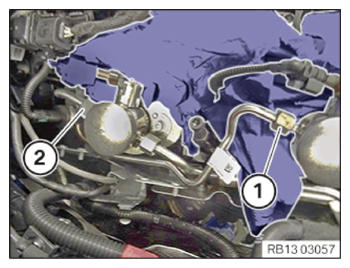

- Turn union nut (2) until hand-tight.
- Turn union nut (1) until hand-tight.
- Tighten the union nut (2).
TIGHTENING TORQUE SPECIFICATIONS
| Fuel delivery line to high pressure pump | ||
|---|---|---|
| Coupling nut | tightening torque | 33 Nm |
- Tighten the union nut (1).
TIGHTENING TORQUE SPECIFICATIONS
| Fuel delivery line to high pressure pump | ||
|---|---|---|
| Coupling nut | tightening torque | 33 Nm |
Follow-up work
- Refer to INSTALLING ALL IGNITION COILS .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE STRUT BRACE .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
