Installing the clean air pipe for cylinders 1 to 3

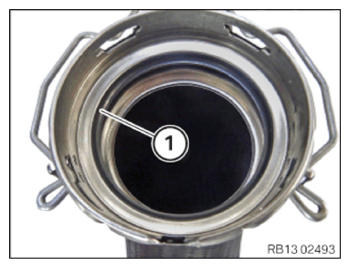

Check seal (1) for damage and, if necessary, replace it.

Courtesy of BMW OF NORTH AMERICA, INC.

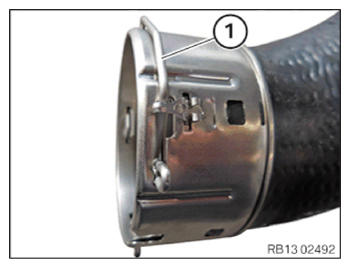

Lock clamp (1).

Courtesy of BMW OF NORTH AMERICA, INC.

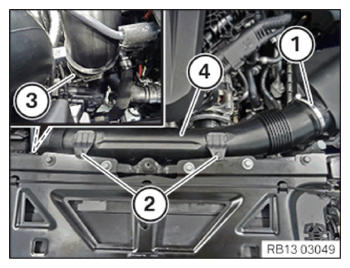

Guide in and install clean air pipe (4) for cylinders 1 to 3.
Ensure that clamp (3) locks audibly.
Secure expanding rivet (2).
Tighten clamp (1).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Clean air pipe to upper section of intake filter housing
cl.	Tightening torque	3 Nm

Follow-up work
