Install the sealing cap with radial shaft seal

• Clean sealing surfaces.

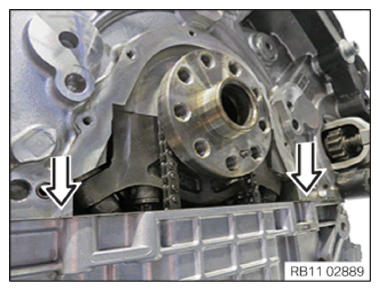

• Apply the sealing compound at the contact points (arrows) on the crankcase and oil pan.
  SEALING COMPOUND SPECIFICATIONS



  Sealant Drei Bond 1209

  30 ml, Tube

  07 58 9 062 376

• Check the fitting sleeves for damage and replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  The work must be performed with vehicle care to prevent component damage.

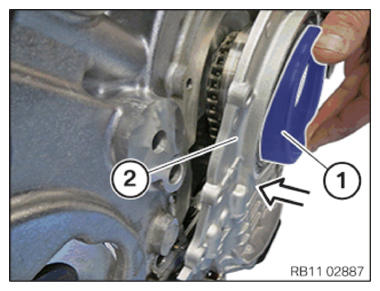

• Push the sealing cap (2) with the shaft seal and support ring (1) and abut (arrow).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  The work must be performed with vehicle care to prevent component damage.

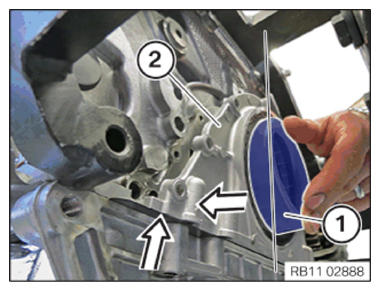

• Counter-hold the sealing cap (2) with the shaft seal in the lower area (arrow).
• Install the support ring (1) on the camshaft.
• Slide the sealing cap (2) with the upper shaft seal above the support ring (1) and abut.

  Courtesy of BMW OF NORTH AMERICA, INC.

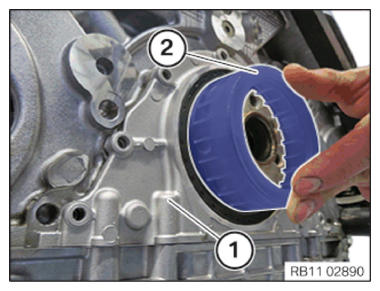

• Press on the casing (1) and remove the support ring (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

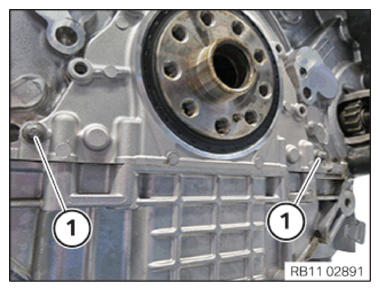

• Hand-tighten the bolts (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace screws (1).

  Parts:  Screws

• Hand-tighten the bolts (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

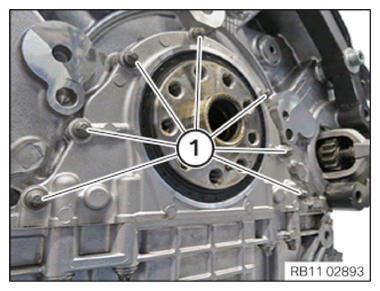

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Sealing cap with shaft seal to crankcase
  Torx screw M6	tightening torque  10 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

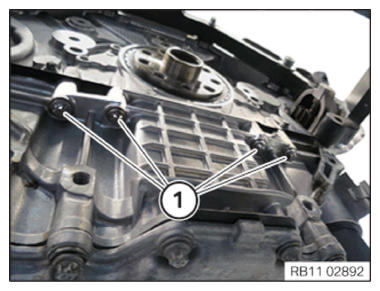

• Tighten down screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Upper oil sump section to sealing cap
  M8 Replace screws.	tightening torque  27 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE FLYWHEEL .
• Refer to INSTALLING AUTOMATIC TRANSMISSION (ALL-WHEEL DRIVE VEHICLE) (GA8HP76Z) .
• Refer to FASTENING THE PROP SHAFT (PARTIALLY REMOVED) .
• Refer to INSTALLING THE RETAINING PLATES .
• Refer to INSTALLING THE CONNECTING SUPPORTS ON THE TUNNEL .
• Refer to INSTALLING THE HEAT SHIELD .
• Refer to INSTALLING EXHAUST SYSTEM .
• Refer to INSTALLING THE LEFT AND RIGHT REAR DIFFUSER .
• Refer to INSTALLING THE RIGHT REAR TENSION STRUT .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to CHECKING/TOPPING UP THE OIL LEVEL IN THE AUTOMATIC TRANSMISSION .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
