Install the retaining plates
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

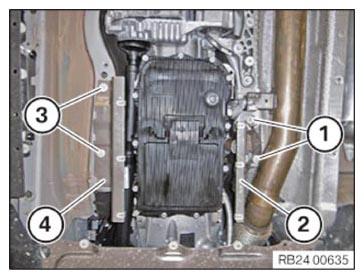

- Install the retaining plates (2) and (4).
- Install the nuts (1) and (3) and tighten.
TIGHTENING TORQUE SPECIFICATIONS
| Retaining plates for vehicle underbody cover |
Sheet metal nut/plastic nut
Replace nuts. |
Tightening torque |
3 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
