Installing the engine mount on the left
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

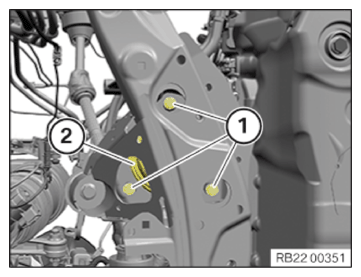

- Install the engine mount (2).
- Tighten the screws (1).TIGHTENING TORQUE SPECIFICATIONS

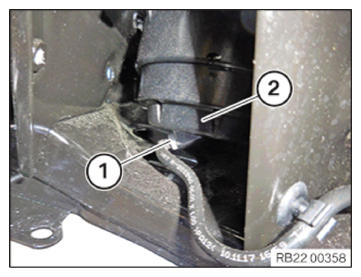

Engine mount to front axle support M8 tightening torque 19 Nm - If installed, install the vacuum hose (1) in the engine mount (2).
Follow-up work
- Refer to RAISING THE FRONT SUBFRAME .
- Refer to TIGHTENING THE BOLTS ON THE FRONT AXLE SUPPORT .
- Refer to SECURING THE WISHBONE ON THE TOP LEFT AND RIGHT ON THE SWIVEL BEARING .
- Refer to REMOVING THE MOBILE LIFTING TABLE .
- Refer to FASTENING COOLANT HOSE TO THE FRONT SUBFRAME .
- Refer to SECURING THE TRANSMISSION OIL COOLING BRACKET .
- Refer to SECURING LEFT AND RIGHT SPRING STRUT HOLDERS ON THE LOWER WISHBONE .
- Refer to FASTENING THE BRAKE HOSE AND THE CABLE ON THE LEFT AND RIGHT .
- Refer to CONNECTING THE CONNECTOR TO THE LEFT AND RIGHT VERTICAL ACCELERATION SENSOR .
- Refer to FASTENING THE RIGHT AND LEFT OUTPUT SHAFTS ONTO THE WHEEL BEARING .
- Refer to SECURING THE UNIVERSAL JOINT ON THE STEERING GEAR .
- Refer to ATTACHING THE WIRING HARNESS OF THE ACTIVE STABILIZER 999) .
- Refer to FASTENING WIRING HARNESS TO THE EPS .
- Refer to IF INSTALLED: FASTEN THE AUXILIARY HEATER .
- Refer to INSTALLING LEFT AND RIGHT BRAKE VENTILATION DUCT .
- Refer to INSTALLING THE LEFT AND RIGHT CRASH LEVER .
- Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT, BOTTOM LEFT AND RIGHT .
- Refer to INSTALLING REINFORCEMENT STRUT .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
- Refer to PARTIALLY INSTALLING THE FRONT WHEEL ARCH TRIM (DOOR SILL) .
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
- Refer to ATTACHING THE FRONT LEFT WHEEL .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to TAKING ENGINE OUT OF INSTALLATION ORIENTATION .
