Installing the support for the dashboard

WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.

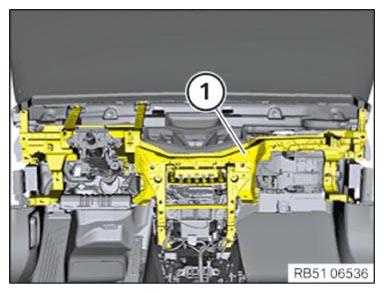

Insert the support (1) for the dashboard in the vehicle.
Feed in the support (1) for the dashboard and connect and lock the present connectors.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: When feeding in the support for the dashboard, make sure the steering shaft on the steering column correctly feeds in.

Securing the steering shaft, bottom, to the steering column

NOTE: The bottom steering shaft and the steering column are not encoded in relation to each other. Always mark the positioning of the steering shaft in relation to the steering column for removals, installations and replacements. Non-compliance will lead to inclination of the steering wheel.

Align the bottom steering shaft (2) to the steering column using the mark (3) that was made during the removal.
Slide the bottom steering shaft (2) onto the steering column.
Replace the clamping bolt (1).
Parts: Clamping bolt
Tighten the clamping bolt (1).

TIGHTENING TORQUE SPECIFICATIONS

Lower steering shaft to steering column
M8 Recut screw thread. Replace clamping bolt. No retorque permitted!	tightening torque	28 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

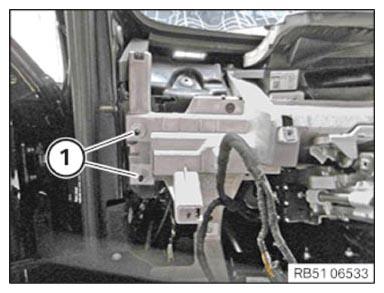

Tighten nuts (1).

TIGHTENING TORQUE SPECIFICATIONS

Support for dashboard
Nut M8	tightening torque	21 Nm
M8 screw	tightening torque	21 Nm
Nut M6	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the nut (1) and the bolts (2).

TIGHTENING TORQUE SPECIFICATIONS

Support for dashboard
Nut M8	tightening torque	21 Nm
M8 screw	tightening torque	21 Nm
Nut M6	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

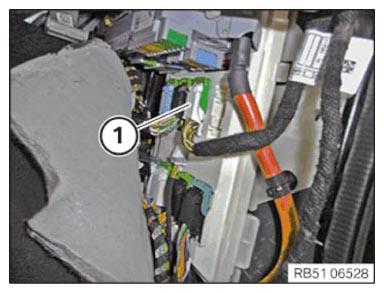

Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the left and right side.

Install the head unit high (HU-H) and tighten the screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Head unit on support
screw	Tightening torque	2.3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

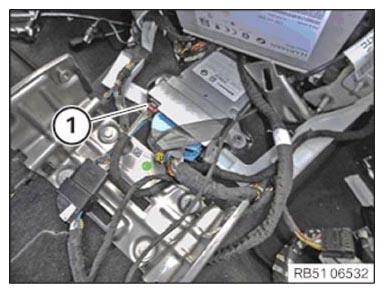

Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

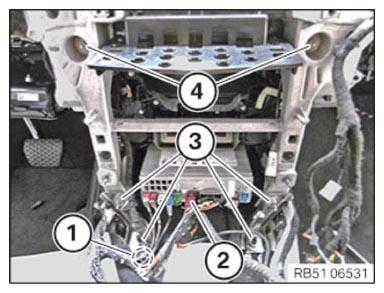

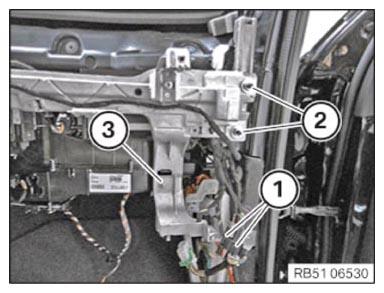

Install the angle bracket and tighten the nuts (3) and (4).

TIGHTENING TORQUE SPECIFICATIONS

Support for dashboard
Nut M8	tightening torque	21 Nm
M8 screw	tightening torque	21 Nm
Nut M6	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

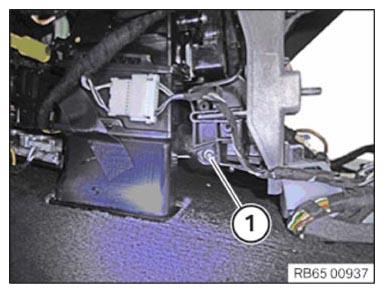

Establish the ground connection and tighten the nut (1).

TIGHTENING TORQUE SPECIFICATIONS

Ground cable to body
Hexagon nut	Tightening torque	8.0 Nm

Connect the connector (2) to the Head Unit High (HU-H) and lock.

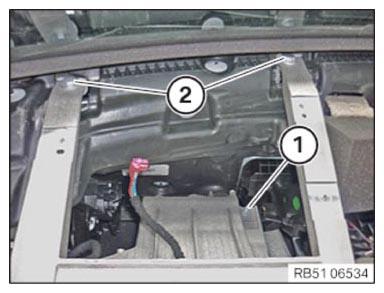

Install the nuts (2) and (3) and tighten.

TIGHTENING TORQUE SPECIFICATIONS

Support for dashboard
Nut M8	tightening torque	21 Nm
M8 screw	tightening torque	21 Nm
Nut M6	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connectors (1) and lock.

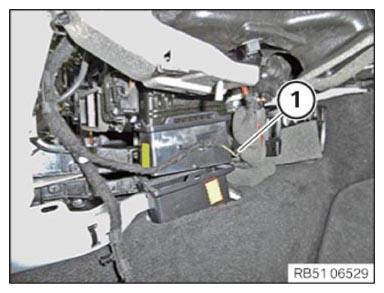

Connect the connector (1) in the right footwell and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Attach the connector (1) to the temperature sensor and lock it.

Courtesy of BMW OF NORTH AMERICA, INC.

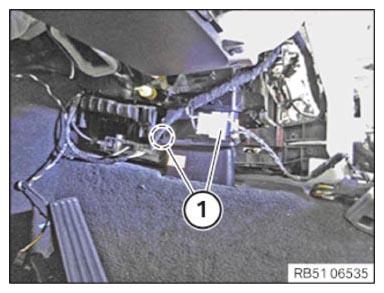

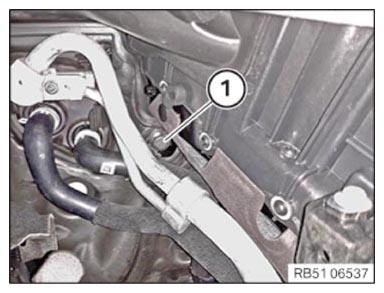

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Support for dashboard
Nut M8	tightening torque	21 Nm
M8 screw	tightening torque	21 Nm
Nut M6	tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE HEAD-UP DISPLAY .
Refer to INSTALL INSTRUMENT PANEL TRIM .
Refer to INSTALLING THE GLOVE BOX LIGHT .
Refer to INSTALLING SIDE TRIM PANEL IN FOOTWELL ON RIGHT A-PILLAR .
Refer to INSTALLING THE FRONT RIGHT DOOR SILL COVER STRIP .
Refer to INSTALLING RIGHT FOOTWELL TRIM .
Refer to INSTALLING THE TRIM FOR THE HEAD-UP DISPLAY .
Refer to INSTALLING THE STEERING COLUMN SWITCH CLUSTER (SZL) .
Refer to INSTALLING STEERING COLUMN SHROUD LOWERING SECTION .
Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
Refer to INSTALLING THE STEERING WHEEL (SPORTS STEERING WHEEL) .
Refer to INSTALLING THE AIRBAG UNIT (SPORTS STEERING WHEEL) .
Refer to INSTALLING THE CENTRAL INFORMATION DISPLAY (CID) .
Refer to INSTALLING AUDIO CONTROL UNIT .
Refer to INSTALLING THE LIGHT OPERATING UNIT .
Refer to INSTALL THE DECORATIVE STRIP ON THE DASHBOARD ON THE LEFT .
Refer to INSTALLING THE SIDE PANEL ON LEFT DASHBOARD .
Refer to INSTALLING FOLD-OUT COMPARTMENT ON THE LEFT .
Refer to INSTALLING THE TRIM PANEL FOR THE PEDAL ASSEMBLY .
Refer to INSTALL THE DECORATIVE STRIP ON THE RIGHT DASHBOARD .
Refer to INSTALLING THE INSTRUMENT CLUSTER (KOMBI) .
Refer to INSTALLING THE SIDE PANEL ON DASHBOARD ON THE RIGHT .
Refer to INSTALLING THE INSTRUMENT CLUSTER TRIM .
Refer to INSTALLING LEFT AND RIGHT A-PILLAR TRIM PANEL .
Refer to INSTALLING THE CENTER CONSOLE .
Refer to PARTIALLY INSTALLING STORAGE COMPARTMENT OF CENTER ARMREST .
Refer to INSTALLING THE CARPET ON THE CENTER CONSOLE AT LEFT AND RIGHT SIDES .
Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
Refer to CONNECTING ALL BATTERY GROUND LEADS .
Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
