Installing the front right door sill cover strip
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing the front door sill cover strip

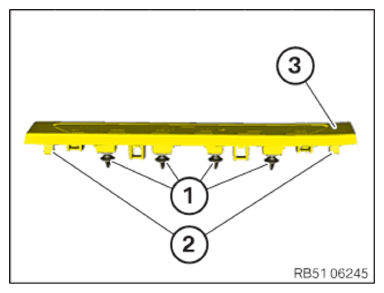

- Remove clips (1) remaining in the body and mount them on the front door sill cover strip (3).
- Check if the clips (1) and the guides (2) are damaged and if available, replace the clips (1) if necessary.
Damaged or missing clips (1) and guides (2) must be replaced.
- Install front door sill cover strip (1) and connect and lock the plug, if necessary.
- Position front door sill cover strip (1) on body.

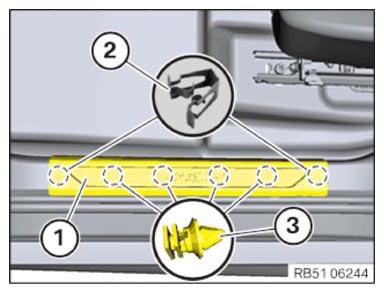

- Lock front door sill cover strip (1) using clamps (2) and clips (3).
