Taking engine out of installation position
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
- When lowering the engine, guide the engine mount (1) in the front subframe.
- Make sure that the plastic of the engine mount (1) is not damaged.
- Lower the engine by turning the spindle 2 361 506 (00 6 103)
.
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
Engine mount to front axle support M8 tightening torque
19 Nm - Tighten the screw (1) of the right engine mount with a standard tool.TIGHTENING TORQUE SPECIFICATIONS
Engine mount to engine support bracket M12 tightening torque
100 Nm - Install the right reinforcement strut (2).
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
Engine mount reinforcement strut on front subframe M12 tightening torque
110 Nm - Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
Engine mount reinforcement strut on body M12 tightening torque
110 Nm - Release the special tool 0 490 567 (11 0 020) from the engine bridge.
- Release and remove the special tool 0 490 567 (11 0 020)
from the mounting brackets (1).
Installing intake filter housing
Prerequisite
Ignition is switched off.
- Check rubber mount (1) for correct fit in the intake filter housing.
- Feed in the cable of the Lambda oxygen sensors through the opening (arrow) on the intake filter housing (1).
- Connect intake filter housing (1) with the clean air pipes (2).
- Install intake filter housing (1) and fasten in the rubber mounts (markings).
- Tighten clamps (1).TIGHTENING TORQUE SPECIFICATIONS
Clean air pipe to upper section of intake filter housing cl. tightening torque

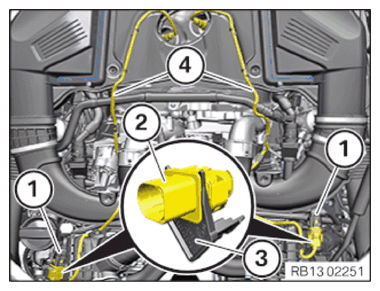

3 Nm - Attach the cable (4) of the Lambda oxygen sensor to the clamps.
- Attach the connector (2) to the holder (3) and lock. The connectors (2) must engage audibly.
- Connect the connector (1) of the Lambda oxygen sensors and lock.
The connectors (1) must engage audibly.
Install acoustic cover
NOTE: RISK OF DAMAGE
Damage to the acoustic cover/design cover .
Jerky movements during disassembly and application of excessive force during installation may result in breakage of the acoustic cover/design cover .- Disassemble or mount the acoustic cover/design cover carefully.
- Disassemble or mount snap-lock couplings of the ball pivots one after the other.
- Disassemble or mount the acoustic cover/design cover only at temperatures > 20°C.
- Use only distilled water as an auxiliary material during installation, no lubricants.
- Check acoustic cover for correct seating of the rubber mount (1).
- Check rubber mount (1) and (2) for correct fit.
- Clip the acoustic cover (1) in the holder.
Follow-up work
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING REAR SECTION OF THE FRONT RIGHT WHEEL ARCH COVER .
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE RIGHT .
- Refer to PARTIALLY INSTALLING THE FRONT RIGHT WHEEL ARCH TRIM (DOOR SILL) .
- Refer to INSTALLING THE FRONT RIGHT WHEEL .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT , and INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE TOP RIGHT .
- Refer to INSTALLING THE FRONT HOOD SEAL .
- Refer to INSTALLING THE STRUT BRACE ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE CENTER COWL UPPER PART .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
