Install the cover of the steering assembly on the right
WARNING: This page is about a different car, the 2023 BMW X5, 2022 BMW X5, 2021 BMW X5, 2020 BMW X5, and 2019 BMW X5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install the cover of the steering assembly
NOTE:

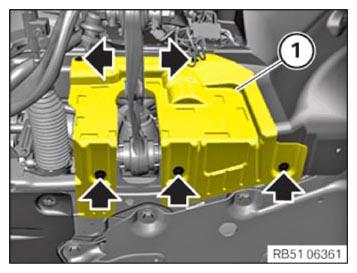

To provide a better overview: Schematic diagram with partially hidden components.
- Insert the cover (1).
- Tighten all bolts (arrows).
TIGHTENING TORQUE SPECIFICATIONS
| Cover, steering unit | ||
| Thermoplastic hexagon screw | Tightening torque | 2.6 Nm |
