Installing windshield
- Prepare the glue cartridge with the standard nozzle C.

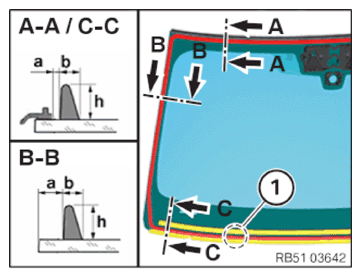

- Apply bead joint in area (1) .
- Apply adhesive bead within the mark on the windshield.
Cut A - A B - B C - C a = Position of the adhesive bead 2 ± 2 mm 3 ± 2 mm 2 ± 2 mm b = Width of adhesive bead 8 ± 1 mm 8 ± 1 mm 8 ± 1 mm h = Height of adhesive bead 14 - 16 mm 14 - 16 mm 14 - 16 mm - Adhere to the geometry of the adhesive bead to make sure that one glue cartridge is sufficient for the complete windshield.

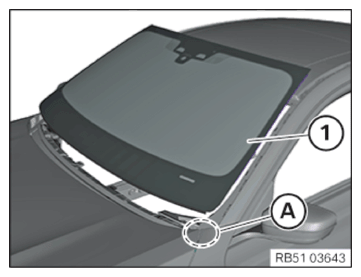

- Carefully perform the following operations on the windshield (1)
with suction lifter:
- running it in parallel to the A-pillar
- feed it in the area (A) on left and right below the side panel
- Position at top
- Align sides evenly
- Press upwards until seal rests evenly on roof
- press evenly all around
- fix with adhesive tape on the roof
- Measure the recessed (A) of the windshield (1) to the roof outer skin (2) with the special tool 0 495 259 (51 0 010) .
- Adjust the recessed (A) .
- Position the windshield (1)
in such a way that the rubber frame (3)
lies even and parallel to the roof outer skin (2)
.
Follow-up work
- Refer to CONNECTING CONNECTOR TO THE RAIN-LIGHT-SOLAR-CONDENSATION SENSOR .
- Refer to INSTALLING THE ADCAM CAMERA .
- Refer to INSTALLING KAFAS CAMERA (MID VARIANT) .
- Refer to INSTALLING KAFAS CAMERA (HIGH VERSION) .
- Refer to INSTALLING LEFT AND RIGHT A-PILLAR TRIM PANEL .
- Refer to INSTALLING THE INTERIOR REARVIEW MIRROR .
- Refer to INSTALLING THE COVERS FOR THE INTERIOR MIRROR .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING LEFT AND RIGHT GUTTER STRIP ON THE WINDSHIELD .
- Refer to CALIBRATE KAFAS CAMERA .
