Installing the covers for the interior mirror

• Check the detents (1) and (2) for damage; if necessary, replace the covers.

  The detents (1) and (2) must not be damaged or missing.

  Courtesy of BMW OF NORTH AMERICA, INC.

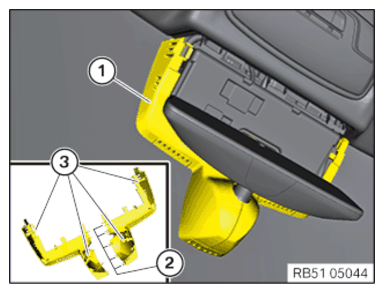

• Guide in cover (1) on the left and right and engage on detents (2) and (3).

Courtesy of BMW OF NORTH AMERICA, INC.

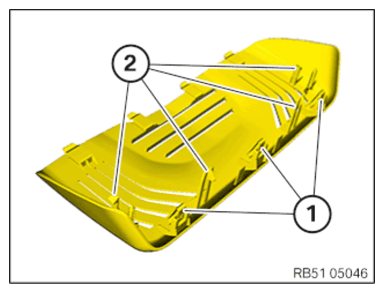

• Check clamps (1) and the detents (2) for damage and, if necessary, replace them.

  The clamps (1) and detents (2) must not be damaged or missing.

  Courtesy of BMW OF NORTH AMERICA, INC.

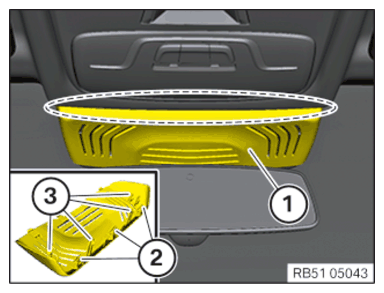

• Feed the cover (1) into the guides at the front and engage it at the snap-in lugs (3) and the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Version B: Installing the covers for the interior mirror

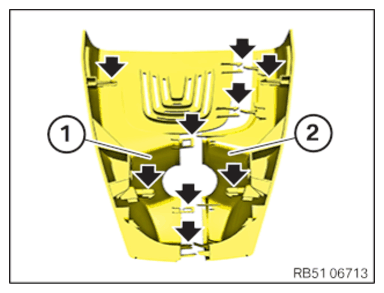

• Check the detents (arrows) on the covers (1) and (2) for damage and replace the covers (1) and (2) if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

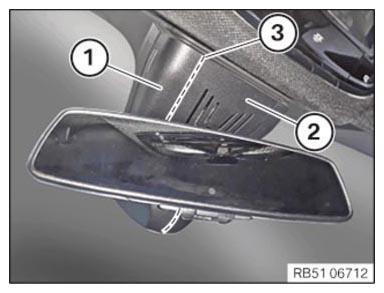

• Position the covers (1) and (2) correctly on the mirror and engage it at the separation point (3).

Courtesy of BMW OF NORTH AMERICA, INC.
