Installing left and right gutter strip on the windshield

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing gutter strip on the windshield

Replace clamps (2).
Parts: Clamps
Replace gutter strips (1).
Parts: Gutter strip

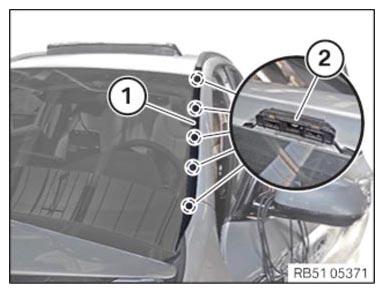

Snap-in the gutter strip (1) starting from the button into the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.

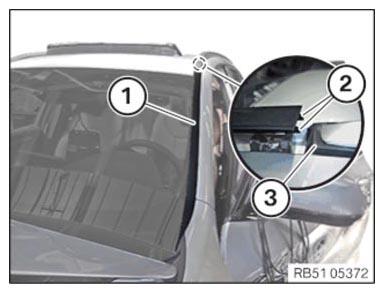

Make sure that the guide lugs (2) of the gutter strip (1) are inserted correctly in the area of roof strip (3).

Courtesy of BMW OF NORTH AMERICA, INC.
