Installing the ADCAM camera
Installing the ADCAM camera (basic version)
NOTE:
TECHNICAL INFORMATION
The camera lenses and the surrounding surfaces in the area of the cameras must not be contaminated! All work must be prepared and carried out in a low-dust environment. Wearing of disposable gloves is mandatory. Only start the work once all new parts are present. If necessary, clean the contaminated surfaces and camera lenses.
The camera lenses and the surrounding surfaces in the area of the cameras must not be contaminated! All work must be prepared and carried out in a low-dust environment. Wearing of disposable gloves is mandatory. Only start the work once all new parts are present. If necessary, clean the contaminated surfaces and camera lenses.

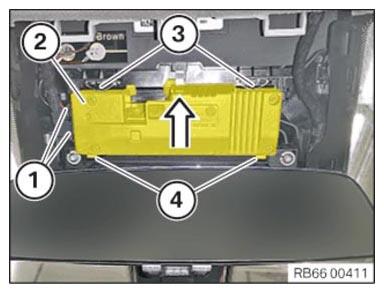

- Install the ADCAM camera (2) and push it upward in the arrow direction against the springs (3).
- Maneuver the ADCAM camera (2) in the guides (4) and position it correctly.
- Connect all connectors (1) and lock.
Install the ADCAM camera (Mid version) with the lens hood
NOTE:
TECHNICAL INFORMATION
The camera lenses and the surrounding surfaces in the area of the cameras must not be contaminated! All work must be prepared and carried out in a low-dust environment. Wearing of disposable gloves is mandatory. Only start the work once all new parts are present. If necessary, clean the contaminated surfaces and camera lenses.
The camera lenses and the surrounding surfaces in the area of the cameras must not be contaminated! All work must be prepared and carried out in a low-dust environment. Wearing of disposable gloves is mandatory. Only start the work once all new parts are present. If necessary, clean the contaminated surfaces and camera lenses.
NOTE:
TECHNICAL INFORMATION
Check complete lens hood (including detents, guides and mounting elements) for damage before installing the cameras or the wiring harness.
Damaged lens hoods must no longer be used, as permanent firm fit of the cameras is not guaranteed.
Check complete lens hood (including detents, guides and mounting elements) for damage before installing the cameras or the wiring harness.
Damaged lens hoods must no longer be used, as permanent firm fit of the cameras is not guaranteed.

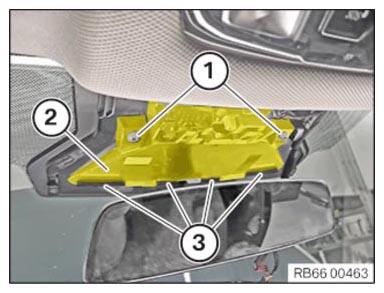

- Insert the lens hood (2) of the ADCAM camera at the guides (3) and position it correctly.
- Tighten the screws (1).
TIGHTENING Torque SPECIFICATION
| Lens hood on windshield | ||
| Screw | Tightening torque | 1.8 Nm |

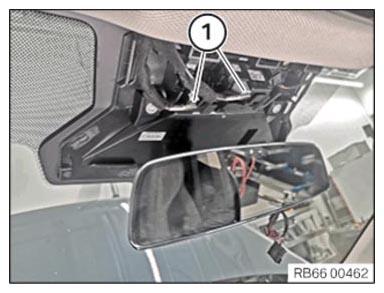

- Connect and lock both connectors (1).
