Installing left and right A-pillar trim panel
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install A-pillar trim panel
WARNING:
Pyrotechnic components.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
- Replace any damaged part or ones that have been dropped.
- For additional information see: SAFETY REGULATIONS FOR HANDLING COMPONENTS WITH GAS GENERATORS .

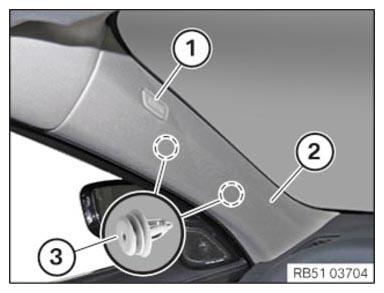

- Insert the A-pillar trim panels (2) and clip into the clips (3).
- Tighten down screw.
TIGHTENING TORQUES SPECIFICATION
| Body pillar trim | ||
| Screw 4, 8x38 | Tightening torque | 3.0 Nm |
- Clip in the cover (1).
