Installing the engine wiring harness for the sensor system 1

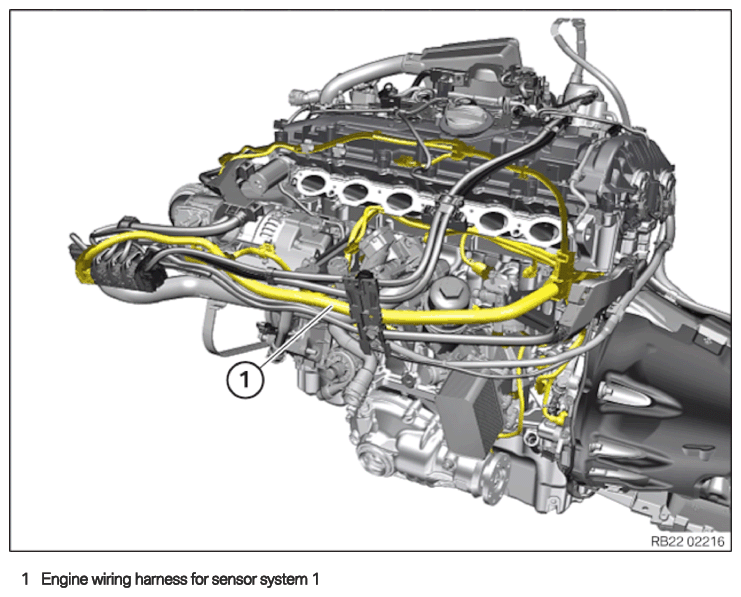

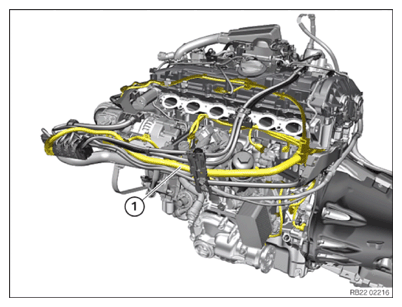

Engine wiring harness for sensor system 1
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
- Route all cables without abrasions, do not trap and crush.

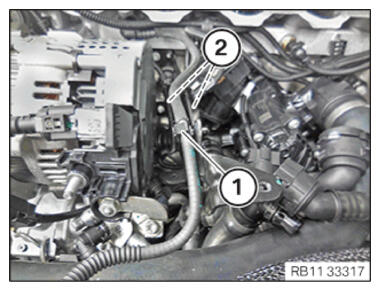

- Guide in and install the engine wiring harness (1)
for sensor system 1.

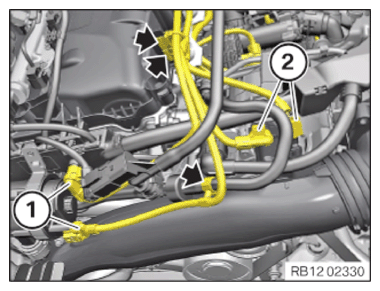

- Guide in and install the engine wiring harness (2) for sensor system 1.
- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.
- Secure the clamps (arrows).

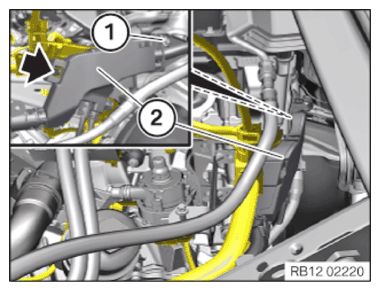

- Guide in and install the engine wiring harness (2) for sensor system 1.
- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.
- Secure the clamps (arrows).

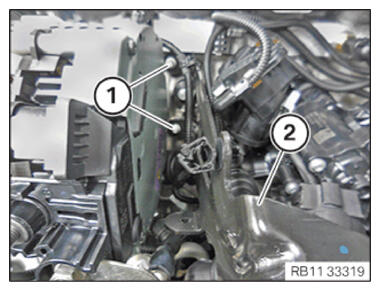

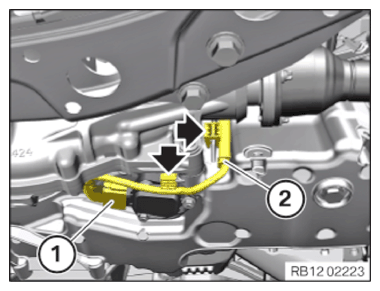

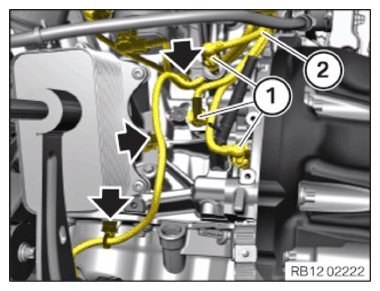

- Guide in and install the engine wiring harness (2) for sensor system 1.
- Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATIONS
Cable bracket on rear cylinder head/transmission M6x20 Tightening torque 10 Nm - Feed in the wiring harness section (2)
and position.
Make sure the locking mechanism (arrow) engages audibly.

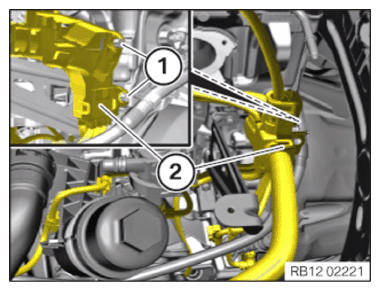

- Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATIONS
Cable bracket on rear cylinder head/transmission M6x20 Tightening torque 10 Nm - Connect connectors (1)
and (2)
and lock.
The connectors (1) and (2) must audibly engage.

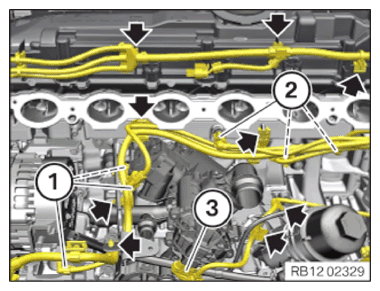

- Connect connectors (3)
and lock.
The connector (3) must engage audibly.
- Connect connectors (2)
and lock.
The connectors (2) must engage audibly.
- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.
- Secure the clamps (arrows).
- Feed in and install the support (2) for the intake plenum.
- Tighten down screws (1)
.TIGHTENING TORQUE SPECIFICATIONS
Support to cylinder head M6X16 tightening torque 8 Nm - Secure clamps (1) .
- Secure clamps (2)
.

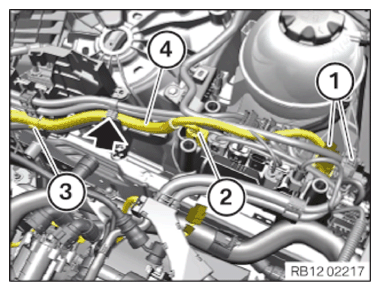

- Guide in and install the engine wiring harness (4) for sensor system 1.
- Guide in and lock cable clip (3)
.
The cable clip (3) must engage audibly.
- Secure clamp (arrow).
- Connect connectors (2)
and lock.
The connector (2) must engage audibly.
- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.
Follow-up work
- Refer to INSTALLING THE INTAKE PLENUM .
- Refer to INSTALLING THE TANK VENT VALVE .
- Refer to INSTALLING THE LOW-TEMPERATURE COOLANT EXPANSION TANK .
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
- Refer to INSTALLING THE ACOUSTIC COVER FOR THE OIL SUMP .
- Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
- Refer to INSTALLING THE STIFFENING PLATE .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING ACOUSTIC COVER AT REAR .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE ENGINE CONTROL UNIT COVER .
- Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
- Refer to INSTALLING THE STRUT BRACE .
- Refer to INSTALLING THE CENTER COWL UPPER PART .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to DEACTIVATING VEHICLE-SPECIFIC HIGH-VOLTAGE OR LOW-VOLTAGE VEHICLE ELECTRICAL SYSTEM .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to FILLING AND VENTING THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
