Installing the electric A/C compressor (EKK)

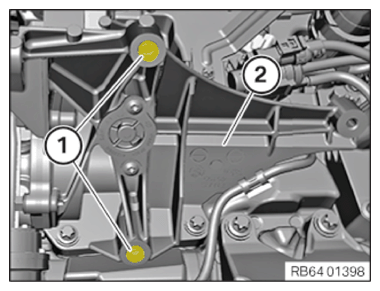

• Check the fitting sleeves (1) on the carrier (2) for damage, replace the fitting sleeves if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: To provide a better overview: Schematic diagram with partially hidden components.

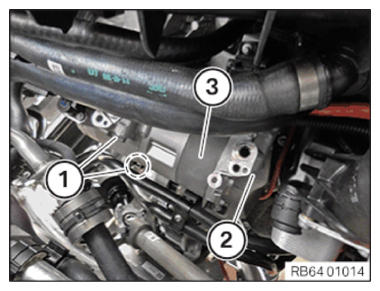

• Insert the electric A/C compressor (EKK) (3) from top front and position it correctly.
• Tighten screws (1) and (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Air conditioning compressor to hybrid coolant pump
  M8x90	tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

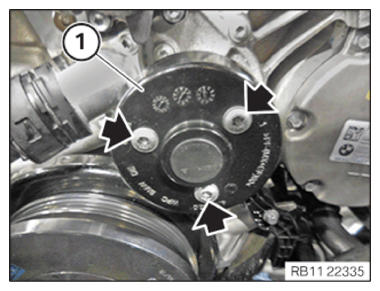

• Feed in and install the belt pulley (1).
• Hand-tighten the bolts (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

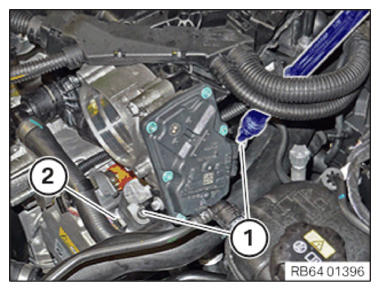

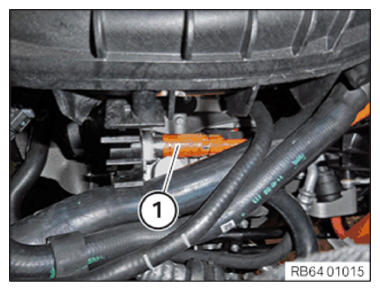

• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect and lock the connector (2) on the electric A/C compressor (EKK).
• Replace the O-rings of the refrigerant lines.

  Parts:  O-rings

• Fit the refrigerant lines on the air conditioning compressor and tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Refrigerant line on air conditioning compressor
  M8	tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: The following step(s) must be performed if the listed component(s) is/are installed.

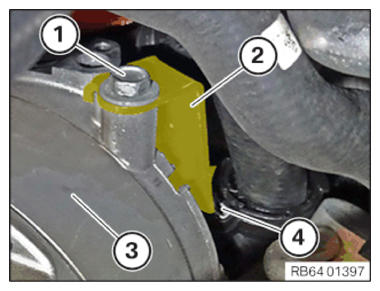

• Feed in the holder (2) at the rear at the air conditioning compressor (3) and correctly position.
• Tighten the screw (1) on the holder (2) at the rear at the electric A/C compressor (EKK) (3).
• Fasten the hose support (4).

  Courtesy of BMW OF NORTH AMERICA, INC.

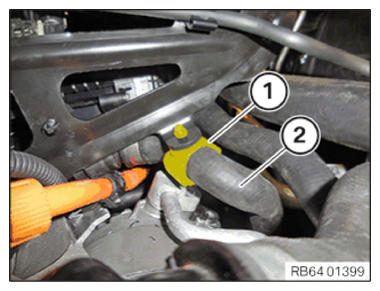

• Feed in and install the holder (1).
• Insert the coolant hose (2) into the holder (1).
• Close the holder (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to SECURING THE REFRIGERANT LINE TO THE CONNECTING PIECE .
• Refer to REMOVING THE LOW-TEMPERATURE COOLANT EXPANSION TANK .
• Refer to REMOVING THE AIR CONDITIONING CONDENSER PARTIALLY .
• Refer to INSTALLING THE ENGINE CONTROL UNIT COVER .
• Refer to INSTALLING HOLDER FOR THE COOLANT LINES .
• Refer to INSTALLING THE TENSIONING PULLEY FOR THE COOLANT PUMP .
• Refer to INSTALLING THE DRIVE BELT FOR THE COOLANT PUMP .
• Refer to TIGHTENING BELT PULLEY .
• Refer to INSTALLING CHARGE AIR LINE .
• Refer to INSTALLING THE CLEAN AIR PIPE AND THE RESONATOR .
• Refer to INSTALLING THE INTAKE FILTER HOUSING (TENSION STRUT REMOVED ON SHOCK TOWER) .
• Refer to INSTALLING FAN COWL .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING TENSION STRUT ON LEFT AND RIGHT SHOCK TOWER .
• Refer to INSTALLING UPPER CROSS CONNECTION .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT , and INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE TOP RIGHT .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to EVACUATE AND CHARGE CONDITIONING .
• Refer to ACTIVATING HIGH-VOLTAGE SYSTEM .
• Refer to INSTALLING FLAP IN RIGHT LUGGAGE COMPARTMENT TRIM PANEL .
• Refer to INSTALLING ACOUSTIC COVER .
