Installing holder for the coolant lines
Installing holder for the coolant lines

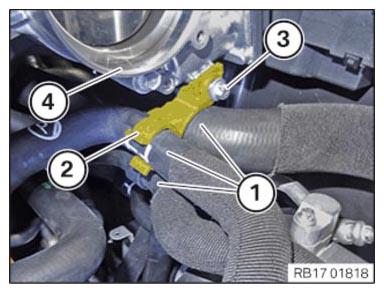

Guide in the holder (3) and place at the throttle valve (4).
Replace the screw (3).
Parts:
Screw
Tighten down screw (3).
TIGHTENING TORQUE SPECIFICATIONS
Holder for coolant hose to throttle body
M6x16 screw
Replace screw.
Tightening torque
11.5 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
Insert the coolant hoses (1) in the holder (2).
Courtesy of BMW OF NORTH AMERICA, INC.
