Installing the tensioning pulley for the coolant pump

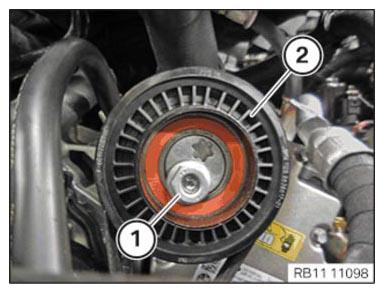

Insert and install the tensioning pulley (2).
Replace nut (1).
Parts: Nut
Fit the nut (1).

G14472901

Courtesy of BMW OF NORTH AMERICA, INC.
