Removing the low-temperature coolant expansion tank
WARNING:
Hot surfaces.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.

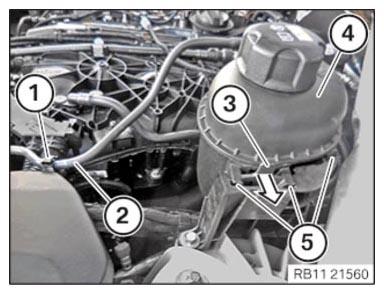

- Unlock and loosen clamp (1).
- Feed out coolant line (2) and place to one side.
- Release lock (3) in the direction of the arrow.
- Feed the low-temperature coolant expansion tank (4) upwards out of the guides (5) and set aside.
- Make sure the coolant line (2) is not damaged.
- Place the low-temperature coolant expansion tank (4) to one side and fix in place.
