Removing the air conditioning condenser partially

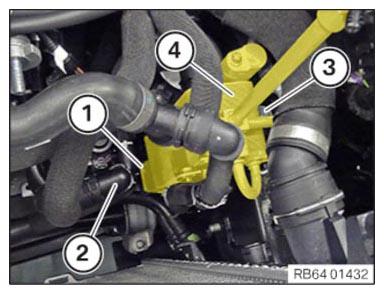

• Release hose support (1).
• Place coolant hose (2) aside.
• Loosen screw (3).
• Slightly raise the air conditioning condenser (4).

  Courtesy of BMW OF NORTH AMERICA, INC.

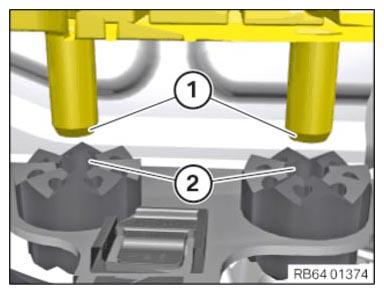

• Pull out the air conditioning condenser with the guide pins (1) below from the rubber mounts (2) and set it aside.

Courtesy of BMW OF NORTH AMERICA, INC.
