When replacing the headlining (with panorama roof)

Preliminary work

• Refer to REMOVE THE ROLLER COVER FOR LUGGAGE COMPARTMENT .
• Refer to REMOVE LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to REMOVING THE FLAP IN THE LUGGAGE COMPARTMENT TRIM PANEL ON THE RIGHT  .
• Refer to REMOVING THE LEFT OR RIGHT LUGGAGE COMPARTMENT LAMP .
• Refer to REMOVING LEFT AND RIGHT BACKREST SIDE SECTION .
• Refer to REMOVING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON LEFT (ALL EQUIPMENT VERSIONS) .
• Refer to REMOVING THE LEFT AND RIGHT BOTTOM C-PILLAR TRIM PANEL .
• Refer to REMOVING THE REAR DOOR SILL COVER STRIP (ON ELECTRICAL REAR SEAT) .
• Refer to REMOVING LEFT AND RIGHT BOTTOM C-PILLAR TRIM PANEL (3RD ROW OF SEATS) .
• Refer to REMOVING RIGHT C-PILLAR TRIM PANEL LEFT AND RIGHT .
• Refer to REMOVING THE LEFT AND RIGHT D-PILLAR TRIM PANEL .
• Refer to REMOVING THE LUGGAGE COMPARTMENT TRIM PANEL .
• Refer to REMOVING THE TOP LEFT AND RIGHT B-PILLAR TRIM PANELS PARTIALLY .
• Refer to REMOVING A-PILLAR TRIM PANEL ON THE LEFT AND RIGHT .
• Refer to REMOVING LEFT AND RIGHT SUN VISORS .
• Refer to REMOVING THE COUNTER SUPPORT FOR THE SUN VISOR ON THE LEFT AND RIGHT .
• Refer to REMOVING THE ROOF FUNCTION CENTER (FZD) .
• Refer to REMOVING ALL GRAB HANDLES .
• Refer to REMOVING THE HOLDER FOR THE ROLLER COVER FOR LUGGAGE COMPARTMENT .
• Refer to REMOVING THE HEADLINING (WITH PANORAMA ROOF) .

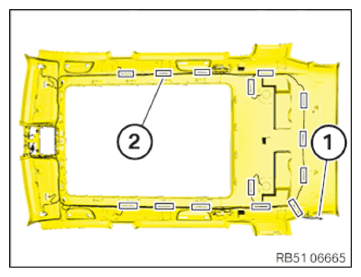

• Version A:

  Remount the vehicle wiring harness (1) and fasten with the adhesive tape (2) as shown.

  Courtesy of BMW OF NORTH AMERICA, INC.

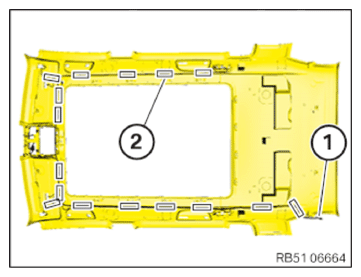

• Version B:

  Remount the vehicle wiring harness (1) and, in addition to the adhesive tape version A  , fasten with the adhesive tape (2) as shown.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE HEADLINING (WITH PANORAMA ROOF) .
• Refer to INSTALLING THE HOLDER FOR THE ROLLER COVER FOR LUGGAGE COMPARTMENT .
• Refer to INSTALLING ALL GRAB HANDLES .
• Refer to INSTALLING ROOF FUNCTION CENTER (FZD) .
• Refer to INSTALLING COUNTER SUPPORTS FOR THE LEFT AND RIGHT SUN VISOR .
• Refer to INSTALLING THE LEFT AND RIGHT SUN VISOR .
• Refer to INSTALLING LEFT AND RIGHT A-PILLAR TRIM PANEL .
• Refer to PARTIALLY INSTALLING THE B-PILLAR TRIM PANELS AT THE TOP LEFT AND RIGHT .
• Refer to INSTALLING TRIM PANEL OF LUGGAGE COMPARTMENT .
• Refer to INSTALLING D-PILLAR TRIM PANEL ON LEFT AND RIGHT .
• Refer to INSTALLING THE LEFT AND RIGHT C-PILLAR TRIM PANEL .
• Refer to INSTALLING LEFT AND RIGHT C-PILLAR TRIM PANELS AT THE BOTTOM .
• Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON LEFT (ALL EQUIPMENT VERSIONS) .
• Refer to INSTALLING LEFT AND RIGHT C-PILLAR TRIM PANELS AT THE BOTTOM (3RD ROW OF SEATS) .
• Refer to INSTALLING THE REAR DOOR SILL COVER STRIP (ELECTRICAL REAR SEAT) .
• Refer to INSTALLING THE LEFT AND RIGHT BACKREST SIDE SECTION .
• Refer to INSTALLING THE LEFT OR RIGHT LUGGAGE COMPARTMENT LAMP .
• Refer to INSTALLING THE FLAP IN LEFT LUGGAGE COMPARTMENT TRIM PANEL  .
• Refer to INSTALL LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to INSTALLING ROLLER COVER FOR LUGGAGE COMPARTMENT .
