Install D-pillar trim panel on left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.
Installing D-pillar trim panel

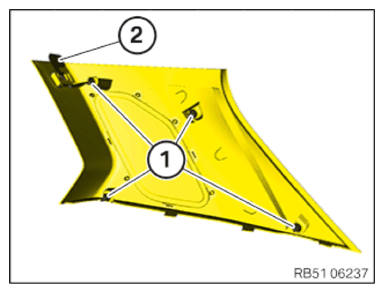

- Check the clips (1) and the guide (2) for damage, replace if necessary.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

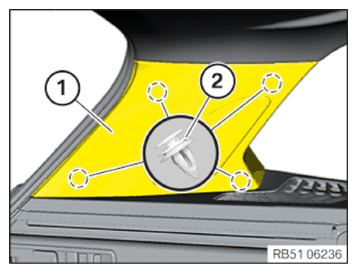

- Correctly position D-pillar trim panel (1) and clip in at the clips (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
