Installing left and right C-pillar trim panels at the bottom
Install the bottom C-pillar trim panel
NOTE:
Description is for left component only. Procedure on the right side is identical.

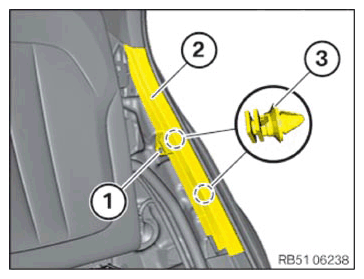

- Feed in C-pillar trim panel (2) in the door sill cover strip and position correctly.
- Clip in C-pillar trim panel (2) at the clips (3).
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| C-pillar trim panel at the bottom of the body | ||
| Screw 4.8x16 | Tightening torque | 1.4 Nm |
