Take engine out of installation orientation

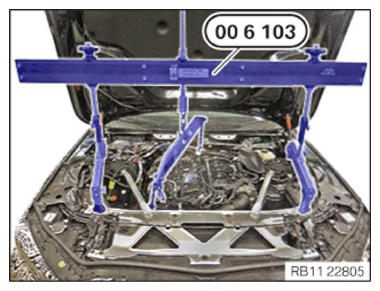

- Lower the engine by turning the spindle 2 361 506 (00 6 103) until the engine is completely in contact
with the engine mounts.

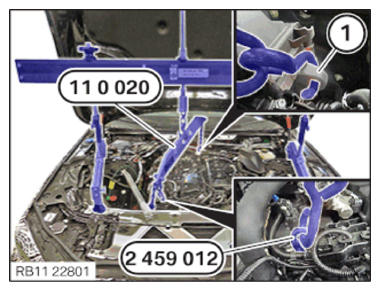

- Feed out the special tool 0 490 567 (11 0 020) at the special tool 2 459 012 and set aside.
- Feed out the special tool 0 490 567 (11 0 020)
at the engine mounting bracket (1) at the rear and set aside.NOTE: TECHNICAL INFORMATION

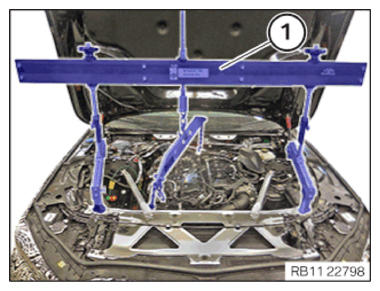

Conduct the following operation with the assistance of a second person. - Remove the engine bridge (1) with the help from another person.

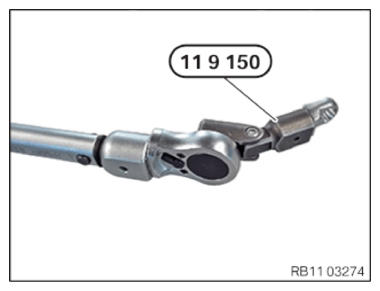

- Prepare special tool 0 493 751 (11 9 150)
as shown.

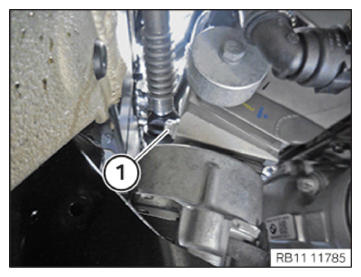

- Tighten screw (1) left engine mounting bracket using special tool 0 493 751 (11 9 150)
from the bottom.TIGHTENING TORQUES SPECIFICATION
Engine mount to engine support bracket M12 Tightening torque 100 Nm - Tighten the screw (1) of the engine mount on the right
with a standard tool from the top.TIGHTENING TORQUES SPECIFICATION
Engine mount to engine support bracket M12 Tightening torque 100 Nm - Loosen the screws (1) from the special tool 2 459 012 .
- Guide out and remove the special tool 2 459 012 on the cylinder head.
Follow-up work
- Refer to INSTALLING FUEL DELIVERY LINE .
- Refer to INSTALLING ALL IGNITION COILS .
- Refer to INSTALLING ACOUSTIC COVER AT REAR .
- Refer to INSTALLING THE COWL UPPER PART .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE REAR HOOD SEAL .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING MOUNT OF HOOD SEAL ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT TOP LEFT AND RIGHT .
- Refer to INSTALLING RESONATOR .
- Refer to INSTALLING INTAKE FILTER HOUSING .
- Refer to INSTALLING THE RIGHT FRONT-END STRUT .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to ACTIVATING ELECTRICAL SYSTEM .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
- Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
