Installing all ignition coils
NOTE:
The description is provided only at one component. The procedure is the same for all other components.
Install ignition coil

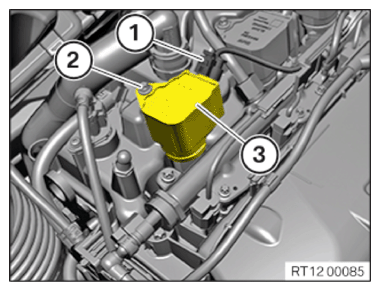

- Install ignition coil (3).
- Tighten down screw (2).
TIGHTENING TORQUES SPECIFICATION
| Ignition coil | ||
|---|---|---|
| Screw | Tightening torque | 8 Nm |

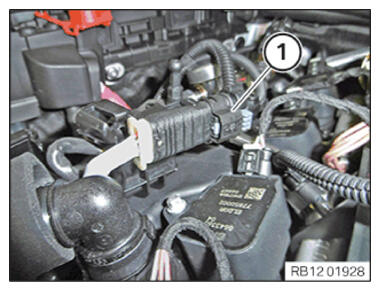

- Connect connectors (1) and lock.
The connector (1) must engage audibly.

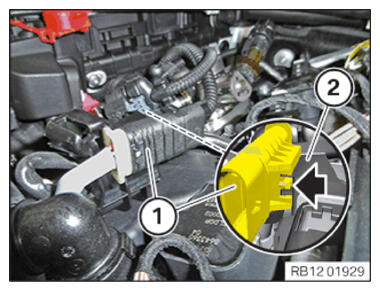

- Connect the connector (1) with the holder (2) and lock (arrow).
The connector (1) must engage audibly.
- Connect connectors (1) and lock.
The connector (1) must engage audibly.
NOTE:
The description is provided only at one component. The procedure is the same for all other components.
Install ignition coil

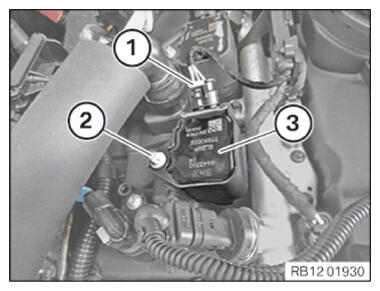

- Install ignition coil (3).
- Tighten down screw (2).
TIGHTENING TORQUES SPECIFICATION
| Ignition coil | ||
|---|---|---|
| Screw | Tightening torque | 8 Nm |
- Connect connectors (1) and lock.
The connector (1) must engage audibly.

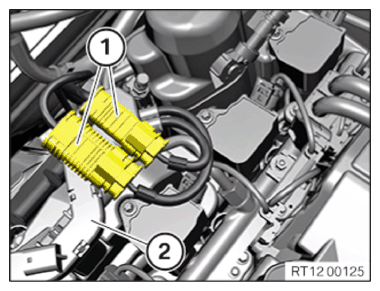

- Attach connector (1) of the primary oxygen sensor and the monitoring oxygen sensor to the cable duct (2).
