Installing the engine wiring harness for the sensor system 2

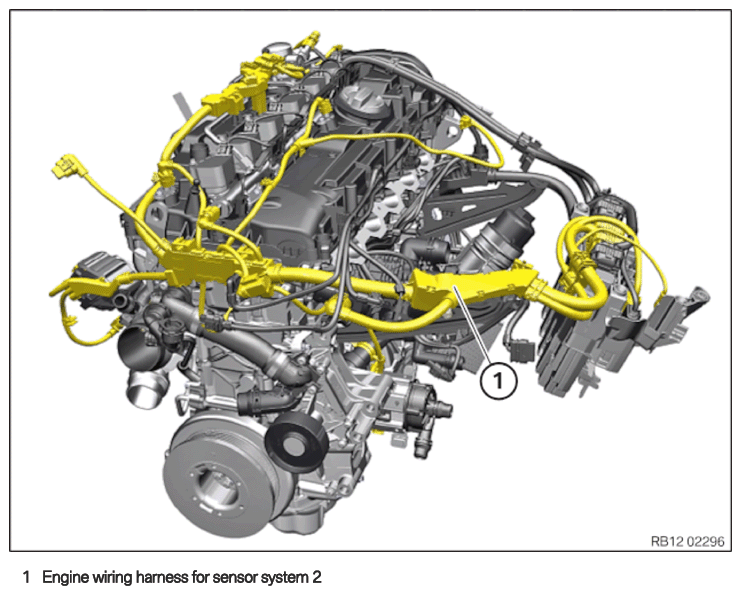

Engine wiring harness for sensor system 2
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
- Route all cables without abrasions, do not trap and crush.
- Feed in the engine wiring harness (1)
for the sensor system 2 and install it.
- Feed in the engine wiring harness (6)
for the sensor system 2 and install it.
The locks (arrows) must engage audibly.
- Feed in differential pressure sensor (5) and position.
- Tighten down screw (4) .
TIGHTENING TORQUE SPECIFICATIONS
| Differential pressure sensor to holder | ||
| TS6X18 | Tightening torque | 3.5 Nm |
- Connect connectors (3)
and lock.
The connector (3) must engage audibly.
- Connect the connector (2)
with engine wiring harness (6)
for the sensor system 2 and lock it.
The connectors (2) must engage audibly.
- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.
- Version A:
Feed in the engine wiring harness (2) for sensor system 2 and install it.
Connect connectors (1) and lock.
The connectors (1) must engage audibly.
Secure the clamps (arrows).
- Version B:
Feed in the engine wiring harness (2) for sensor system 2 and install it.
Connect connectors (1) and lock.
The connectors (1) must engage audibly.
Secure the clamps (arrows).
- Feed in the engine wiring harness (5) for sensor system 2 and install it.
- Ensure that locks (4) engage audibly.
- Tighten nut (3) .
TIGHTENING TORQUE SPECIFICATIONS
| Front ground cable to cylinder head | ||
| M6 | tightening torque | 8 Nm |
- Connect connectors (2)
and lock.
The connector (2) must engage audibly.
- Connect connectors (1)
and lock.
The connectors (1) must engage audibly.
- Secure the clamps (arrows).
- Feed in and position auxiliary coolant pump (4) .
- Feed in and position retaining bracket (3) .
- Tighten nut (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Electric coolant pump to holder | ||
| M6 | tightening torque | 8 Nm |
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
- Feed in the engine wiring harness (1) for the sensor system 2 and install it.
- Secure the clamps (arrows).
- Connect connectors (1)
and lock.
The connector (1) must engage audibly.
- Feed in and install the (3) electric coolant pump.
- Position the retainer (2) .
- Tighten nut (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Electric coolant pump to holder | ||
| M6 | tightening torque | 8 Nm |
- Fasten the cable clip (arrow).
Follow-up work
- Refer to INSTALLING HEAT MANAGEMENT MODULE .
- Refer to INSTALLING THE INTAKE PLENUM .
- Refer to INSTALLING THE TANK VENT VALVE .
- Refer to INSTALLING THE CONTROL UNIT HOLDER .
- Refer to INSTALLING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
- Refer to INSTALLING THE DME CONTROL UNIT .
- Refer to INSTALLING ACOUSTIC COVER AT REAR .
- Refer to INSTALLING ENGINE VENTILATION LINE .
- Refer to INSTALLING CLEAN AIR PIPE .
- Refer to INSTALLING INTAKE FILTER HOUSING .
- Refer to INSTALLING THE RIGHT FRONT-END STRUT .
- Refer to INSTALLING THE SECOND END PANEL UNDERNEATH .
- Refer to INSTALLING THE COWL UPPER PART .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to ACTIVATING ELECTRICAL SYSTEM .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to INSTALLING THE REAR HOOD SEAL .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
- Refer to FILLING AND VENTING THE LOW-TEMPERATURE COOLANT CIRCUIT .
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY .
- Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
