Install engine ventilation line
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
- Route all cables without abrasions, do not trap and crush.
NOTE:
TECHNICAL INFORMATION
Check the retaining lug on the connector for damage and perform a tension check as needed.
Check the retaining lug on the connector for damage and perform a tension check as needed.

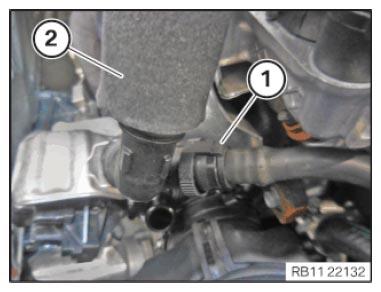

- Check the sealing ring (1) for damage and replace the tank ventilation line if necessary.
- Insert and position the engine ventilation line (2).

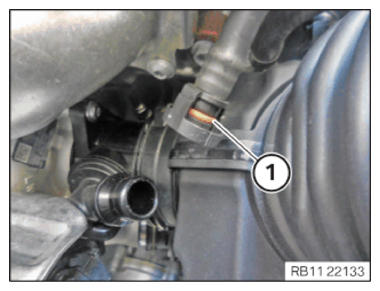

- Insert and install the tank vent line (1).
The tank vent line (1) must engage audibly.

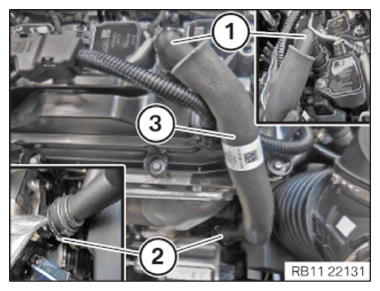

- Insert and install the engine ventilation line (3).
- Make sure that the locks (1) and (2) snap-in audibly.

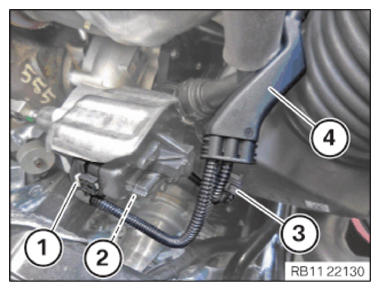

- Feed in and position the wiring harness section of sensor system 2 (4).
- Connect connectors (2) and lock.
- Connect connectors (1) and lock.
The connectors (1) and (2) must engage audibly.
- Secure clamps (3).

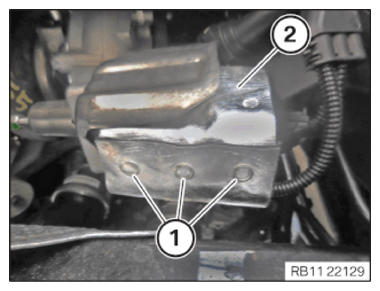

- Feed in and install the heat protection (2).
- Lock the locks (1).
- Locks (1) must engage audibly.
Follow-up work
- INSTALLING INTAKE FILTER HOUSING .
- Refer to INSTALLING THE RIGHT FRONT-END STRUT .
- Refer to INSTALLING ACOUSTIC COVER .
