Install clean air pipe

• Check the seal (1) for damage, replace it if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacing the damaged seal

• Remove damaged seal.

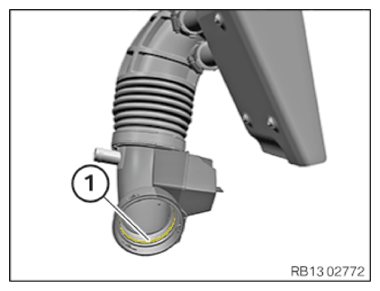

• Clean the gasket groove (1) with a dry cloth.

  The gasket groove (1) must be clean.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace gasket.

  Parts:  Seal

• Install the seal dry without lubricant or mounting agent.
  NOTE: TECHNICAL INFORMATION
  Incorrect assembly is possible. Ensure correct installation position.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Thread in seal and install.
• Make sure that the seal is installed correctly in the gasket groove (1).
• Make sure that the sealing lip (2) is directed to the inside as shown.

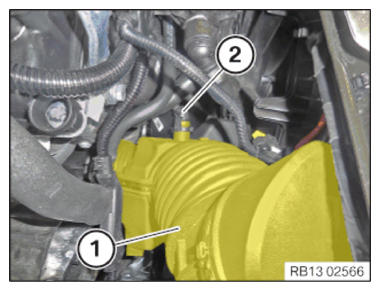

• Feed in and position the clean air pipe (1) with resonator.
• Connect engine ventilation line (2) and lock.

  The engine ventilation line (2) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

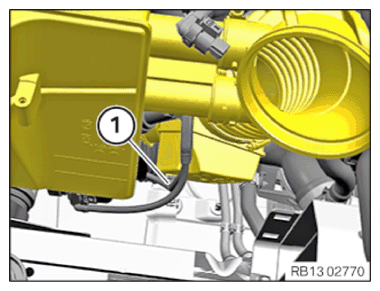

• Feed in and install the clean air pipe with resonator (2).
• Lock clamp (1).

  The clamp (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Secure clamps (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

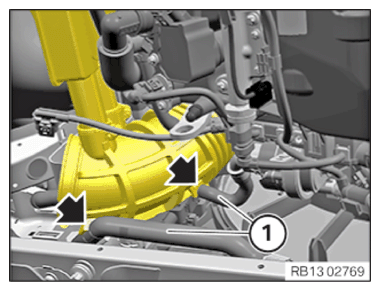

• Fasten the coolant line (1) on the holders (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING INTAKE FILTER HOUSING .
• Refer to INSTALLING THE RIGHT FRONT-END STRUT .
