Replacing the front crankshaft seal

WARNING: Working on 12 V electrical system.
Risk of short circuits! Risk of fire!

Make sure that there is no charger connected to the jump start terminal in the engine compartment.
Detach battery ground lead from battery.
For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.

NOTE: RISK OF DAMAGE
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS).
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults.

Detach battery terminal from battery pole by carefully shifting. Do not pry off using a tool.

NOTE: TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

Preliminary work

Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
Refer to REMOVING THE ACOUSTIC COVER .
Refer to REMOVING RESONATOR .
Refer to REMOVING CLEAN AIR PIPE .
Refer to REMOVING CHARGE AIR LINE .
Refer to REMOVING THE ACOUSTIC COVER FOR THE ENGINE AT THE FRONT .
Refer to REMOVING THE DRIVE BELT FOR ALTERNATOR .
Refer to REMOVING THE CENTER UNDERBODY PROTECTION .
Refer to REMOVING REAR UNDERBODY PROTECTION .
Refer to REMOVING STARTER MOTOR .
Refer to REMOVING THE VIBRATION DAMPER .

Removing the front crankshaft seal

Drive in the crankshaft seal (1) in the marked area with a punch to approx. 1 cm deep.

Courtesy of BMW OF NORTH AMERICA, INC.
Lever out the crankshaft seal (1) with a suitable tool.
Make sure that the sealing surface on the engine block is not scratched.

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the front crankshaft seal

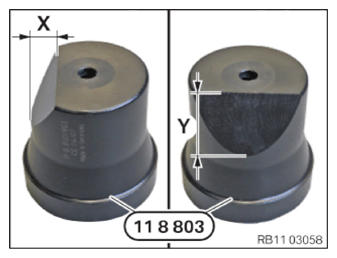

If necessary, cut a special tool 0 496 130 (11 8 803) from the set of special tools 0 496 127 (11 8 800) with a suitable tool as shown in the illustration.
Dimension (X) = 16 mm

Dimension (Y) = 31 mm

Courtesy of BMW OF NORTH AMERICA, INC.
Clean the special tool 0 496 128 (11 8 801) from the set of special tools 0 496 127 (11 8 800) and coat it with motor oil.
Secure special tool 0 496 128 (11 8 801) to the crankshaft using special tool 0 496 129 (11 8 802) from the set of special tools 0 496 127 (11 8 800) .

Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
RISK OF DAMAGE
Radial shaft seal damage.
Taping the sealing lip (inner) and applying oil to the radial shaft seal will lead to its destruction.
- Do not tap the sealing lip (inner) of the radial shaft seal.
- Do not apply oil to the radial shaft seal.
- Install the radial shaft seal dry.
Courtesy of BMW OF NORTH AMERICA, INC.
Carefully slide the crankshaft seal (1) straight in a rotational movement onto the special tool 0 496 128 (11 8 801) from the set of special tools 0 496 127 (11 8 800) until the crankshaft seal is positioned flush against the crankcase.

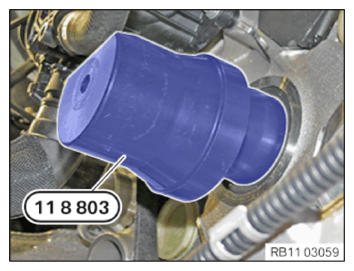

Mount the special tool 0 496 130 (11 8 803) on special tool 0 496 128 (11 8 801) of the set of special tools 0 496 127 (11 8 800) .

Courtesy of BMW OF NORTH AMERICA, INC.

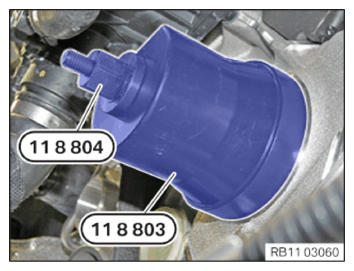

Screw in the special tool (sleeve) 0 496 130 (11 8 803) using the special tool 0 496 131 (11 8 804) from the set of special tools 0 496 127 (11 8 800) and a suitable tool until the sleeve is positioned flush against the crankcase.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING STARTER MOTOR .
Refer to INSTALLING THE VIBRATION DAMPER .
Refer to INSTALLING THE DRIVE BELT FOR ALTERNATOR .
Refer to INSTALL THE ACOUSTIC COVER FOR THE ENGINE AT THE FRONT .
Refer to INSTALLING CHARGE AIR LINE .
Refer to INSTALLING CLEAN AIR PIPE .
Refer to INSTALLING RESONATOR .
Refer to RECONNECTING ALL BATTERY GROUND LEADS .
Refer to INSTALLING ACOUSTIC COVER .
Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
Refer to CHECKING ENGINE OIL LEVEL .
