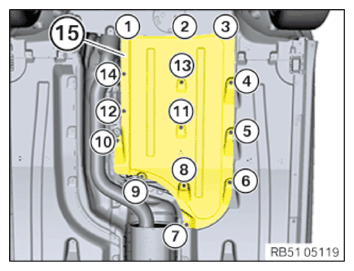

Installing underbody protection at rear
- Guide in the rear underbody protection (15) diagonally to the front.
- Tighten the screws (1) to (14).
TIGHTENING TORQUES SPECIFICATION
| Underbody protection |
| Hexagon screw |
Tightening torque |
3 Nm |
