Installing the side trim

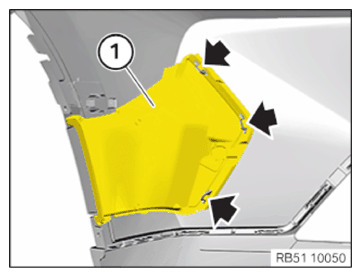

• Install the trim (1) and engage it at the detents (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

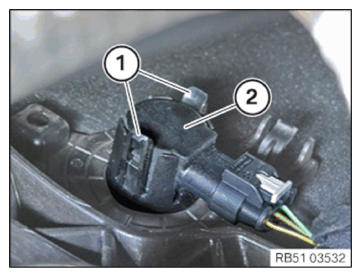

• Install the ultrasonic sensor (2) and snap it in at the detents (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

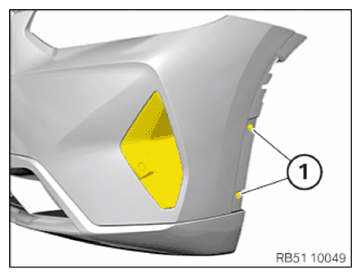

• Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Install the reinforcement on the bumper COVER .
• Install front bumper COVER .
• Partly install the front sections of both front wheel arch COVERS .
• Partially install both front wheel ARCH TRIMS .
• Install front ORNAMENTAL GRILLE .
