Partly installing the front sections of both wheel arch covers at the front
NOTE:
Description is for left component only. Procedure on the right side is identical.

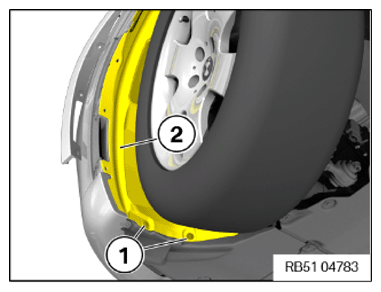

Partially install the front section of the front wheel arch cover
- Fold forward wheel arch cover (2).
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Wheel arch cover (screws) | |
| Thermoplastic hexagon screw | Tightening torque 3 Nm |
