Partially install both front wheel arch trims

NOTE: Description is for left component only. Procedure on the right side is identical.

Partly install the front wheel arch trim

Check

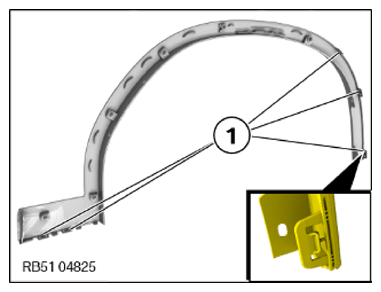

Check detents (1) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The detents (1) of the wheel arch trim are damaged.

Measure
- Replace wheel arch trim.

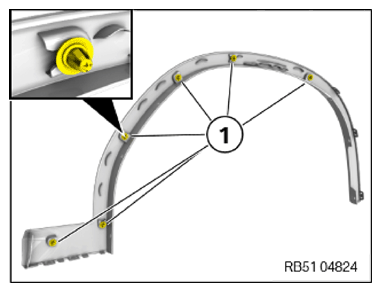

Check the clips (1) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

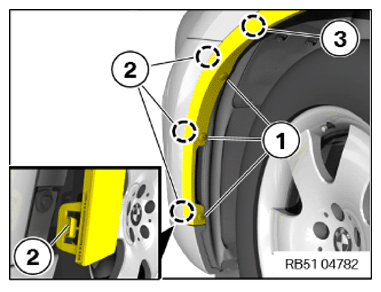

Clip the wheel arch trim into the clip (3) the area of the bumper cover and into the detents (2).
Mount blind rivet (1) using the special tool 0 496 521 (00 2 230) .

Courtesy of BMW OF NORTH AMERICA, INC.
