Install bumper cover, front

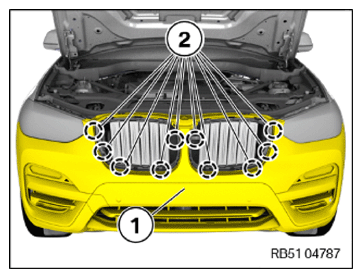

• Position bumper cover (1) and engage in area of air flap control at top in mountings (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the left and right side.

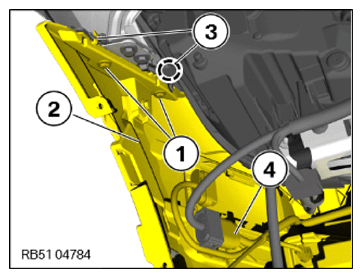

• Connect connector (4).
• Clip bumper cover (2) into detents (3).
• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Front bumper cover on side wall
  Hexagon screw	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

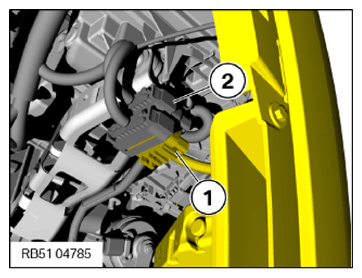

• Connect connector (1) in the right wheel well.
• Hook connector (1) into holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

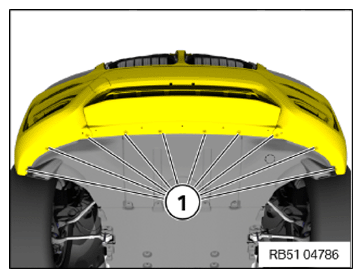

• Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Underbody protection
  Hexagon screw	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

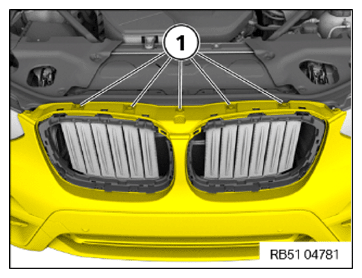

• Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Partly install the front sections of both front wheel ARCH COVERS .
• Partially install both front wheel ARCH TRIMS .
• Install front ORNAMENTAL GRILLE .
