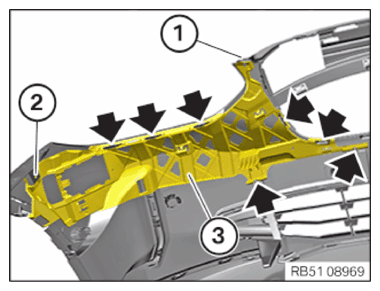

Installing the reinforcement on the bumper cover

• Place the reinforcement (3) and engage it into the detents (arrows).
• Install the expanding rivet (1).
• Tighten down screw (2).
  TIGHTENING TORQUES SPECIFICATION



  Bumper bracket, side front
  screw	Tightening torque  3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

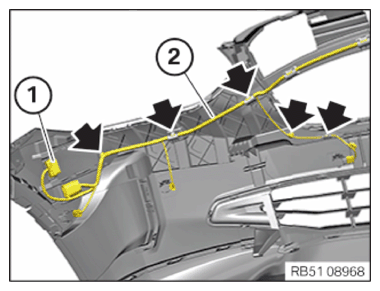

• Connect connectors (1) and lock.
• Secure the wiring harness (2) to the holders (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.
